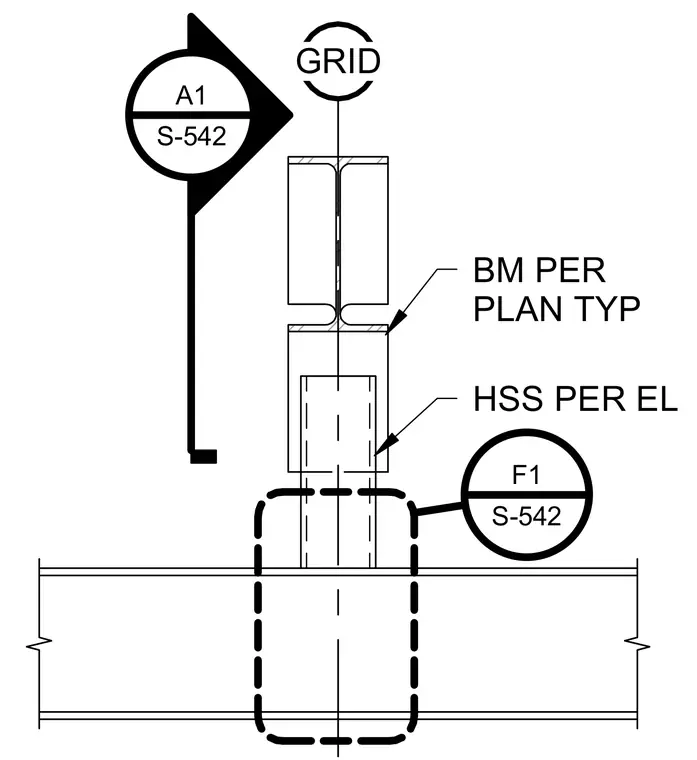

A hollow structural section column sized per elevation aligns vertically with a grid line. A framing beam sized per plan connects at the top of the column typical. A dashed boundary indicates the connection zone at the intersecting structural members.
