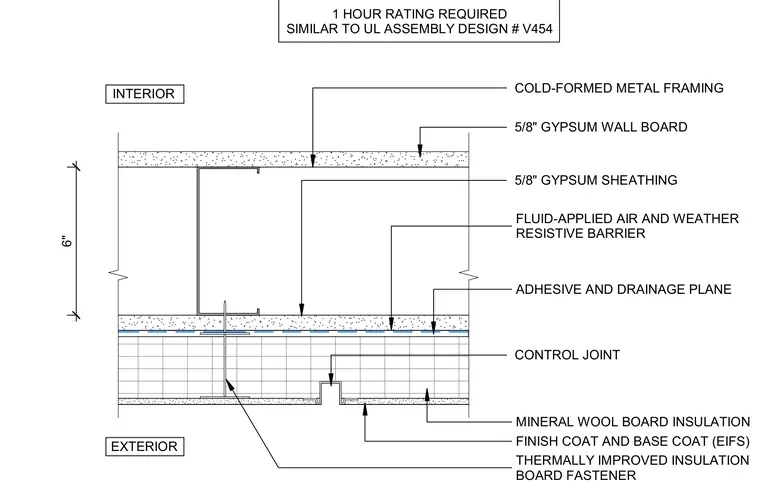

This one-hour rated exterior wall assembly consists of cold-formed metal framing faced on the interior with five-eighths inch gypsum wall board and on the exterior with five-eighths inch gypsum sheathing. A fluid-applied air and weather resistive barrier is applied over the exterior sheathing, followed by an adhesive and drainage plane layer. Mineral wool board insulation is secured to the exterior using thermally improved insulation board fasteners. The exterior finish comprises an exterior insulation and finish system base coat and finish coat, incorporating a control joint.
COLD-FORMED METAL FRAMING 5/8" GYPSUM WALL BOARD EXTERIOR INTERIOR FLUID-APPLIED AIR AND WEATHER RESISTIVE BARRIER ADHESIVE AND DRAINAGE PLANE MINERAL WOOL BOARD INSULATION FINISH COAT AND BASE COAT (EIFS) THERMALLY IMPROVED INSULATION BOARD FASTENER CONTROL JOINT 5/8" GYPSUM SHEATHING 1 HOUR RATING REQUIRED SIMILAR TO UL ASSEMBLY DESIGN # V454 6"
