Metal deck spans perpendicular to the supporting steel beam with a minimum nineteen gauge deck specified for large deck overhangs. A bent plate one-quarter inch thick made of A36 steel forms the edge overhang, providing a maximum nine inch overhang design per the deck supplier. Reinforcing bars size number four are spaced at twelve inches on center in the low flute of the deck. A three-sixteenths inch fillet weld with two-twelve spacing secures the deck at each low flute to the supporting structure.

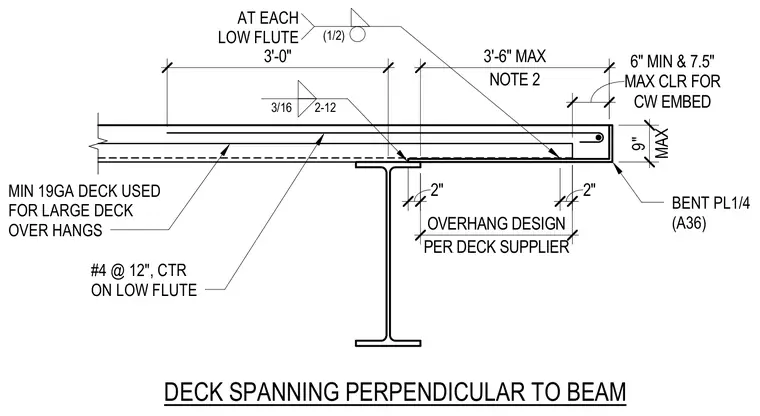

DECK SPANNING PERPENDICULAR TO BEAM 2" 2" PER DECK SUPPLIER OVERHANG DESIGN MAX 9" CW EMBED 6" MIN & 7.5" MAX CLR FOR BENT PL1/4 (A36) 2-12 3/16 AT EACH LOW FLUTE (1/2) #4 @ 12", CTR ON LOW FLUTE MIN 19GA DECK USED FOR LARGE DECK OVER HANGS NOTE 2 3'-6" MAX 3'-0"
