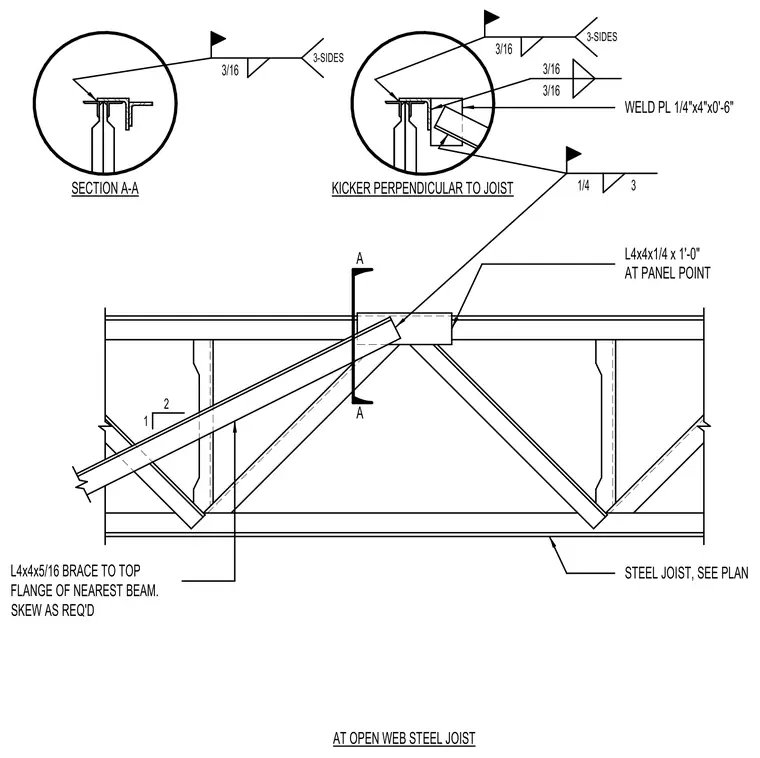

An L4x4x5/16 angle brace frames perpendicular to the top flange of an open web steel joist, skewed as required. The brace connects to a 1/4-inch by 4-inch by 6-inch plate welded to the joist panel point with a 3/16-inch fillet weld on three sides. An L4x4x1/4 angle measuring 1 foot zero inches long ties into the panel point. Section A-A details the perpendicular orientation of the kicker to the joist top chord.
A A L4x4x1/4 x 1'-0" AT PANEL POINT STEEL JOIST, SEE PLAN 3/16 SECTION A-A 3/16 3/16 WELD PL 1/4"x4"x0'-6" KICKER PERPENDICULAR TO JOIST 3/16 3 1/4 3-SIDES 3-SIDES AT OPEN WEB STEEL JOIST L4x4x5/16 BRACE TO TOP FLANGE OF NEAREST BEAM. SKEW AS REQ'D 2 1
