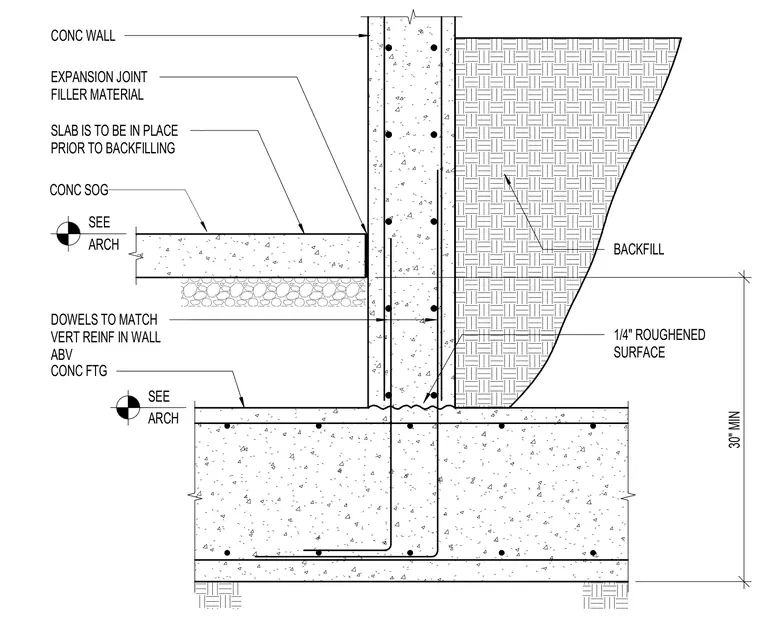

A concrete wall bears upon a concrete footing reinforced with horizontal and bent dowels matching the vertical reinforcement in the wall above. An expansion joint filler material separates the concrete slab-on-grade from the face of the concrete wall. The top of the footing features a quarter-inch roughened surface at the cold joint. Backfill is placed against the exterior wall after the interior slab-on-grade is in place, with a thirty-inch minimum depth shown.
CONC WALL DOWELS TO MATCH VERT REINF IN WALL ABV CONC FTG SEE ARCH 30" MIN CONC SOG SEE ARCH 1/4" ROUGHENED SURFACE EXPANSION JOINT FILLER MATERIAL BACKFILL SLAB IS TO BE IN PLACE PRIOR TO BACKFILLING
