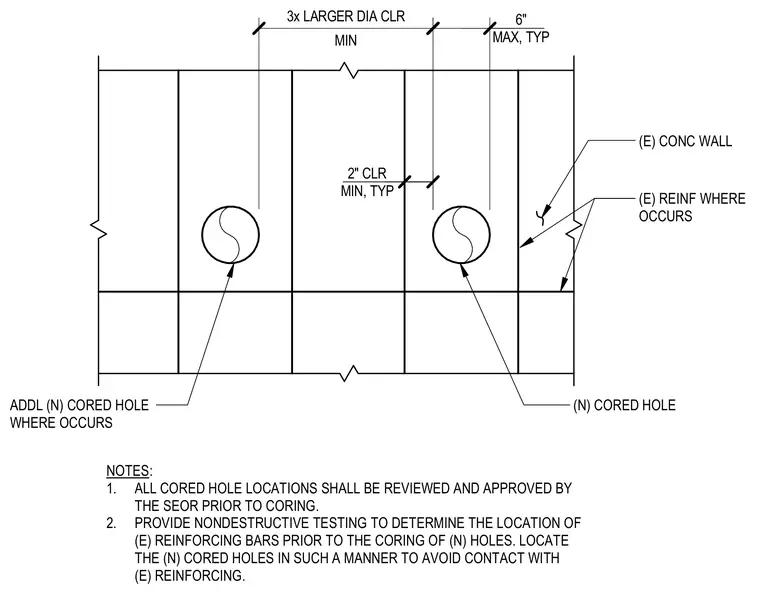

New cored holes in an existing concrete wall require nondestructive testing to locate existing reinforcing bars prior to coring. Holes must maintain a minimum clear spacing of three times the larger diameter and a two-inch minimum clearance from existing rebar. All core hole locations require review and approval by the structural engineer of record prior to execution.
MIN 3x LARGER DIA CLR (E) CONC WALL (E) REINF WHERE OCCURS (N) CORED HOLE ADDL (N) CORED HOLE WHERE OCCURS NOTES: 1. ALL CORED HOLE LOCATIONS SHALL BE REVIEWED AND APPROVED BY THE SEOR PRIOR TO CORING. 2. PROVIDE NONDESTRUCTIVE TESTING TO DETERMINE THE LOCATION OF (E) REINFORCING BARS PRIOR TO THE CORING OF (N) HOLES. LOCATE THE (N) CORED HOLES IN SUCH A MANNER TO AVOID CONTACT WITH (E) REINFORCING. MAX, TYP 6" MIN, TYP 2" CLR
