Structural · S-RDJEC

Buckling-Restrained Braced Frame Gusset Plate Connection at HSS Column

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Gusset Plate HSS Connection Welded Connection

About this detail

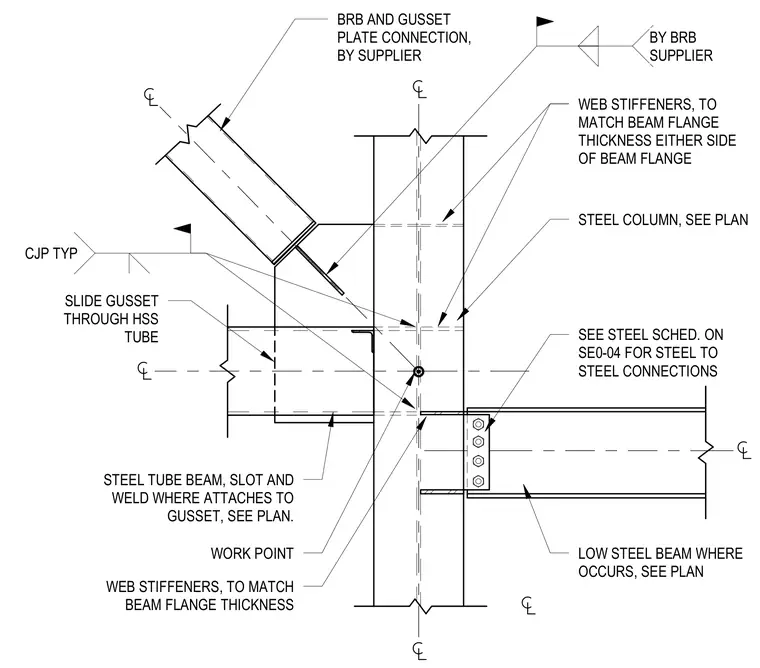

A single gusset plate connects a buckling-restrained brace to a hollow structural section steel column, with the plate sliding through the HSS tube as detailed per plan. Web stiffeners matching the beam flange thickness are installed on either side of the column web. A steel tube beam is slotted and welded to the gusset plate using complete joint penetration welds typically provided by the brace supplier. A low steel beam frames into the opposite side of the column using bolted connections sized per the structural schedule.
