Structural · S-RDJ6E

Masonry Wall at Concrete

Materials

Concrete Reinforced Concrete Masonry / CMU

Elements

About this detail

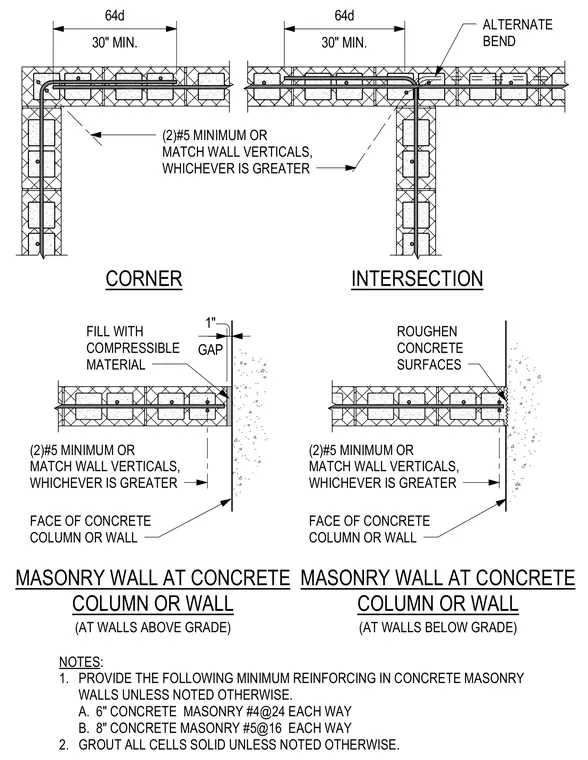

Concrete masonry units intersect concrete columns or walls with specific reinforcing and joint details for above grade and below grade conditions. The corner and intersection details feature two number five bars minimum, or matching wall verticals whichever is greater, with a thirty inch minimum lap length and sixty-four bar diameters development, including alternate bends. The above grade wall connection features a one-inch gap filled with compressible material against the face of the concrete column or wall. The below grade connection requires roughened concrete surfaces at the interface with the fully grouted masonry cells.
