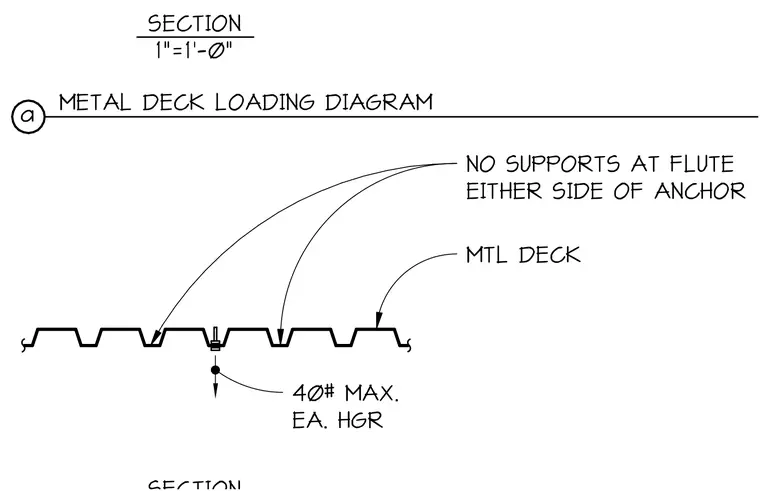

A metal deck profile displays a suspended anchor carrying a maximum load of forty pounds per each hanger. No supports are permitted at the flute on either side of the anchor location.
SECTION 1"=1'-0" METAL DECK LOADING DIAGRAM a NO SUPPORTS AT FLUTE EITHER SIDE OF ANCHOR MTL DECK 40# MAX. EA. HGR
