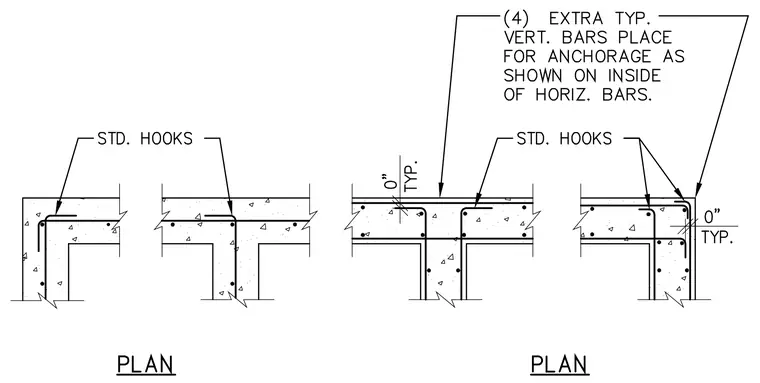

Concrete wall corners and tee intersections incorporate standard hooks on horizontal reinforcing bars for proper development length and anchorage. Four extra typical vertical bars are placed on the inside face of the horizontal bars for anchorage at intersections. Clearances and offsets are dimensioned typically as zero inches.
