Plumbing penetrations pass through steel stud wall framing with associated stud reinforcement. A reinforcing channel matching the stud size and thickness fastens to the stud web using eight number eight screws spaced at six inches on center. Allowable penetration clearances are one inch for three and five-eighths inch studs or one and one-half inch for six-inch studs. The engineer must be contacted if larger penetrations are required.

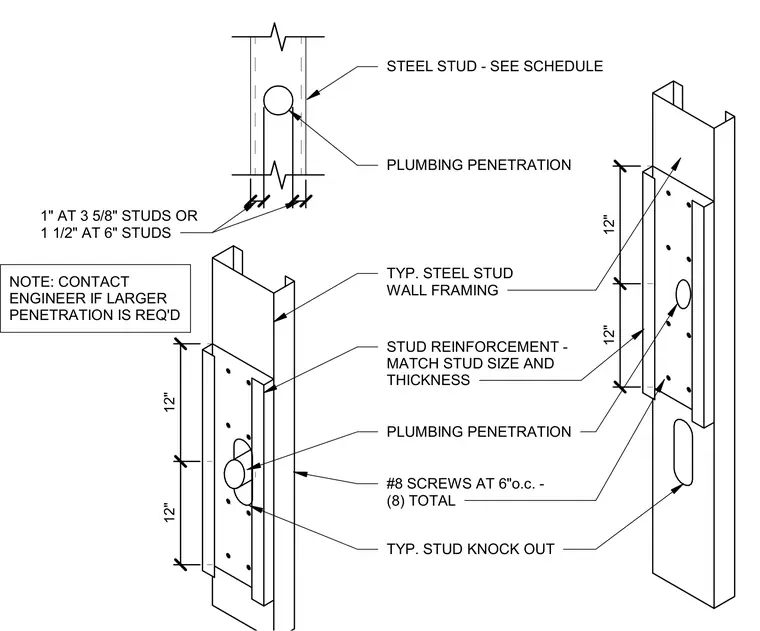

12" 12" 12" 12" NOTE: CONTACT ENGINEER IF LARGER PENETRATION IS REQ'D 1" AT 3 5/8" STUDS OR 1 1/2" AT 6" STUDS STEEL STUD - SEE SCHEDULE PLUMBING PENETRATION TYP. STEEL STUD WALL FRAMING STUD REINFORCEMENT - MATCH STUD SIZE AND THICKNESS PLUMBING PENETRATION #8 SCREWS AT 6"o.c. - (8) TOTAL TYP. STUD KNOCK OUT
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
