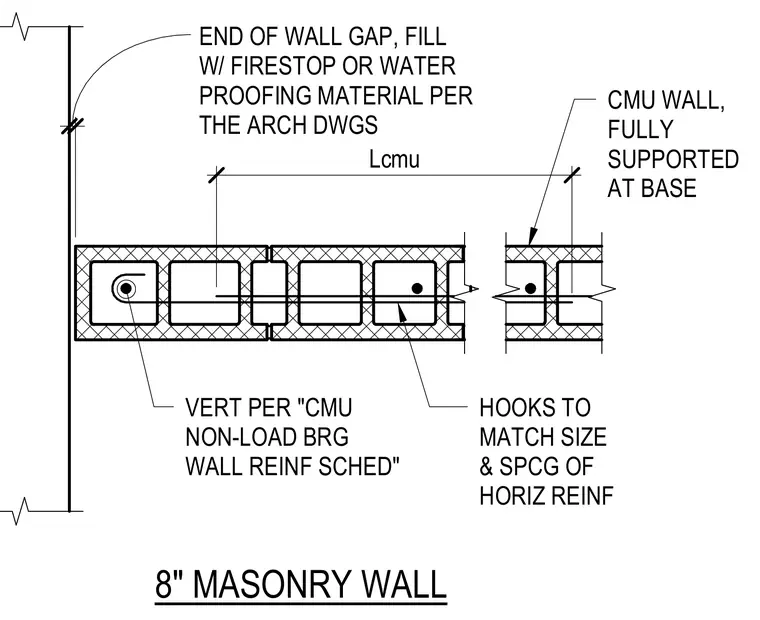

An eight-inch concrete masonry unit wall is fully supported at the base with vertical reinforcing sized per the masonry non-load-bearing wall reinforcement schedule. An end-of-wall gap provides clearance and is filled with firestopping or waterproofing material per the architectural drawings. Horizontal reinforcement includes hooks sized to match the size and spacing of horizontal reinforcing bars.
1/2" CMU WALL, FULLY SUPPORTED AT BASE END OF WALL GAP, FILL W/ FIRESTOP OR WATER PROOFING MATERIAL PER THE ARCH DWGS VERT PER "CMU NON-LOAD BRG WALL REINF SCHED" 8" MASONRY WALL 29" Lcmu HOOKS TO MATCH SIZE & SPCG OF HORIZ REINF
