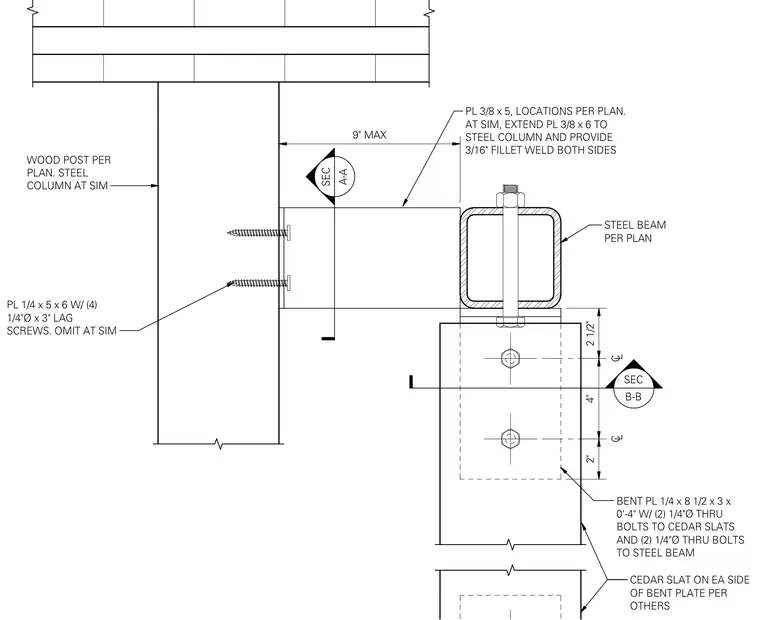

This structural connection detail joins a steel beam to a wood post and steel column using a combination of welded and bolted plates. A 3/8 x 5 inch steel plate extends to the steel column, where it connects via a 3/16 inch fillet weld on both sides. A 1/4 x 5 x 6 inch plate attaches to the wood post using four 1/4 inch diameter by 3 inch lag screws. A 1/4 x 8 1/2 x 3 x 0'-4 inch bent plate ties into the cedar slats on each side and connects to the steel beam with two 1/4 inch diameter through bolts, with two additional 1/4 inch diameter through bolts securing it to the cedar slats.
WOOD POST PER PLAN. STEEL COLUMN AT SIM 9" MAX C L C L 2" 4" 2 1/2" BENT PL 1/4 x 8 1/2 x 3 x 0'-4" W/ (2) 1/4"Ø THRU BOLTS TO CEDAR SLATS AND (2) 1/4"Ø THRU BOLTS TO STEEL BEAM STEEL BEAM PER PLAN PL 3/8 x 5, LOCATIONS PER PLAN. AT SIM, EXTEND PL 3/8 x 6 TO STEEL COLUMN AND PROVIDE 3/16" FILLET WELD BOTH SIDES PL 1/4 x 5 x 6 W/ (4) 1/4"Ø x 3" LAG SCREWS. OMIT AT SIM CEDAR SLAT ON EA SIDE OF BENT PLATE PER OTHERS A-A SEC SEC B-B
