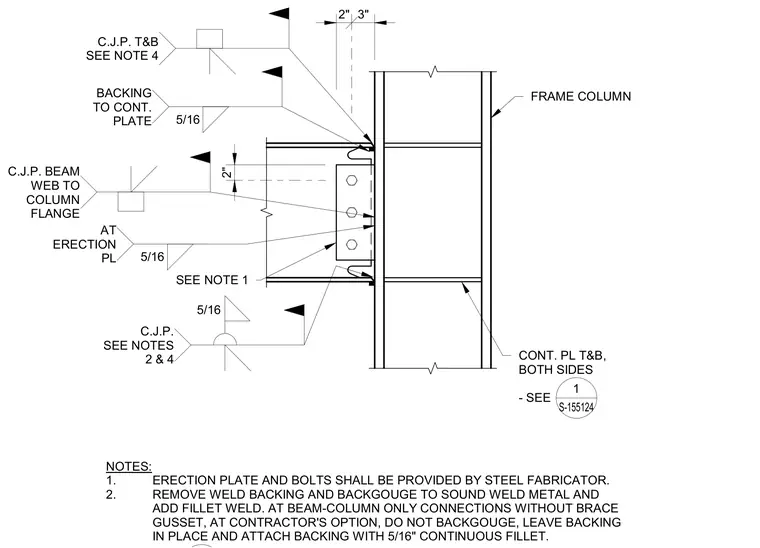

A structural steel beam connects to a frame column flange through complete joint penetration welds at the top and bottom flanges. Continuous plates are welded top and bottom on both sides, with backing left in place and attached with five-sixteenths inch continuous fillet welds or backgouged per project notes. The beam web is joined to the column flange using complete joint penetration welds along with a bolted erection plate provided by the steel fabricator.
C.J.P. T&B SEE NOTE 4 FRAME COLUMN NOTES: 1. ERECTION PLATE AND BOLTS SHALL BE PROVIDED BY STEEL FABRICATOR. 2. REMOVE WELD BACKING AND BACKGOUGE TO SOUND WELD METAL AND ADD FILLET WELD. AT BEAM-COLUMN ONLY CONNECTIONS WITHOUT BRACE GUSSET, AT CONTRACTOR'S OPTION, DO NOT BACKGOUGE, LEAVE BACKING IN PLACE AND ATTACH BACKING WITH 5/16" CONTINUOUS FILLET. 2" 2" 3" SEE NOTE 1 5/16 AT ERECTION PL C.J.P. BEAM WEB TO COLUMN FLANGE CONT. PL T&B, BOTH SIDES - SEE 1 S-155124 C.J.P. SEE NOTES 2 & 4 5/16 BACKING TO CONT. PLATE 5/16
