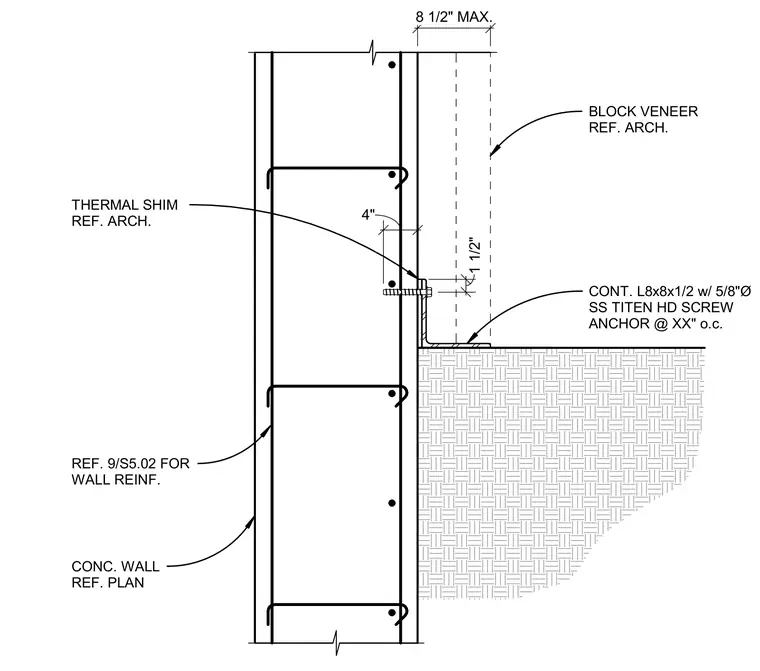

A continuous steel angle measuring L8x8x1/2 is secured to a reinforced concrete basement wall using five-eighths-inch diameter stainless steel Titen HD screw anchors spaced at specified intervals on center. A thermal shim is placed between the steel angle and the concrete wall. The angle supports an exterior block veneer with an eight-and-one-half-inch maximum offset dimension. Wall reinforcement details refer to plan sheet 9/S5.02.
BLOCK VENEER REF. ARCH. CONC. WALL REF. PLAN REF. 9/S5.02 FOR WALL REINF. 8 1/2" MAX. 1 1/2" THERMAL SHIM REF. ARCH. CONT. L8x8x1/2 w/ 5/8"Ø SS TITEN HD SCREW ANCHOR @ XX" o.c. 4"
