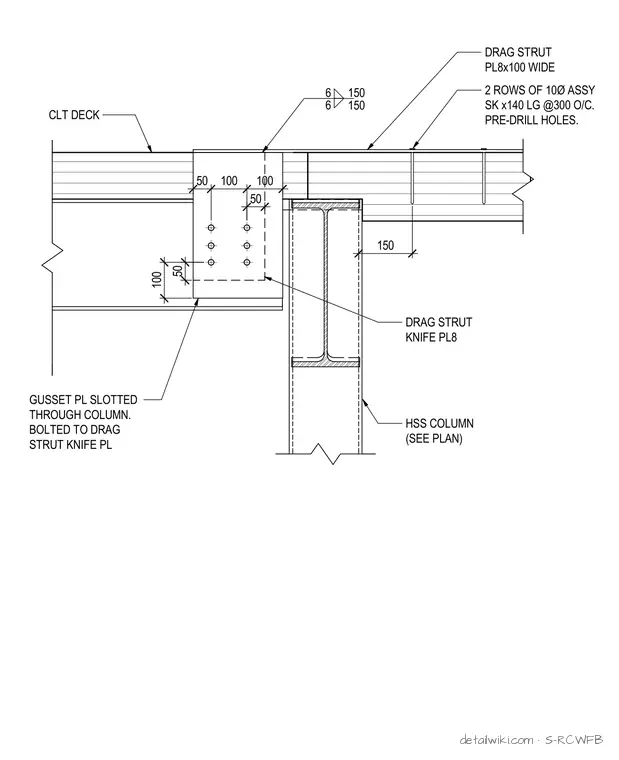

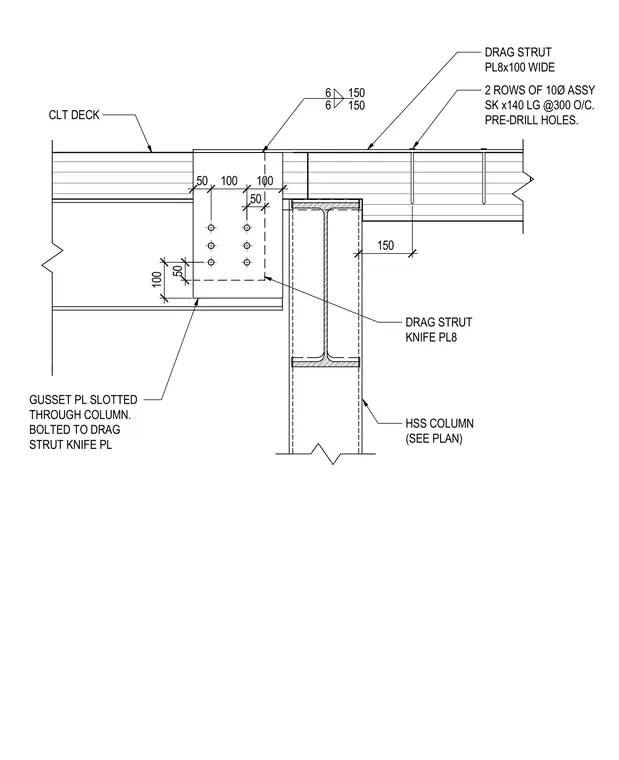

A slotted gusset plate passes through the hollow structural section column sized per plan, connecting to a drag strut knife plate eight millimeters thick. The assembly supports a cross-laminated timber deck and a drag strut plate measuring eight by one hundred millimeters wide. Connection hardware includes two rows of ten-millimeter diameter assembly screws, fourteen millimeters long, spaced at three hundred millimeters on center into pre-drilled holes.
CLT DECK HSS COLUMN (SEE PLAN) 50 100 100 100 DRAG STRUT PL8x100 WIDE 6 6 150 150 50 50 GUSSET PL SLOTTED THROUGH COLUMN. BOLTED TO DRAG STRUT KNIFE PL DRAG STRUT KNIFE PL8 150 2 ROWS OF 10Ø ASSY SK x140 LG @300 O/C. PRE-DRILL HOLES.
