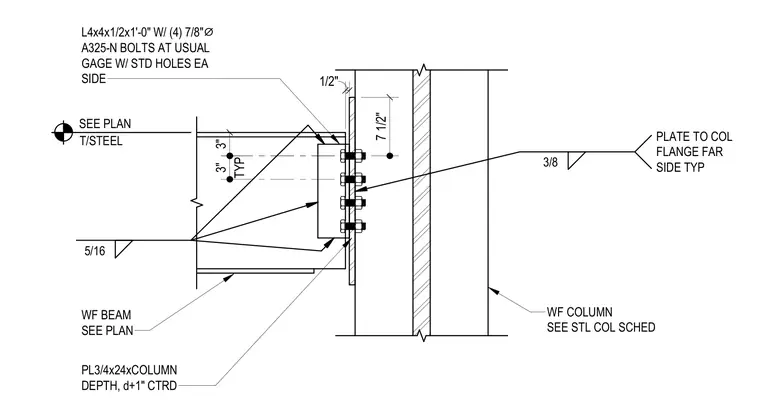

A wide-flange beam frames into a wide-flange steel column via a three-quarter-inch thick plate matching the column depth plus one inch centered. An L4x4x1/2 angle one foot long connects the beam top flange using four seven-eighth-inch diameter A325-N bolts at usual gauge with standard holes each side. The connection plate is secured to the column flange with a three-eighth-inch fillet weld typically on the far side, while five-sixteenth-inch fillet welds secure the seat assembly. The beam size and top of steel elevation are sized per plan, and the column is sized per the structural column schedule.
WF BEAM SEE PLAN PL3/4x24xCOLUMN DEPTH, d+1" CTRD WF COLUMN SEE STL COL SCHED 3/8 PLATE TO COL FLANGE FAR SIDE TYP T/STEEL SEE PLAN 1/2" 3" TYP 3" 7 1/2" L4x4x1/2x1'-0" W/ (4) 7/8" ⌀ A325-N BOLTS AT USUAL GAGE W/ STD HOLES EA SIDE 5/16
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
