Bridge Expansion Joint Detail

Elements

Connections

About this detail

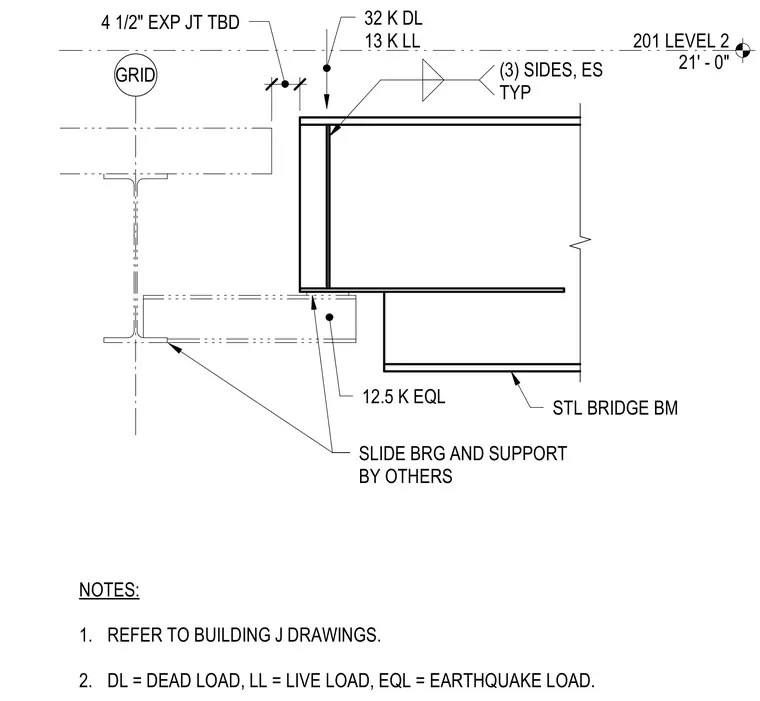

A steel bridge beam bears onto a slide bearing assembly provided by others at Level 2, located at twenty-one feet and zero inches above reference. A four and one-half inch expansion joint is maintained at the grid line. Design loads at this connection include thirty-two kips dead load, thirteen kips live load, and twelve and one-half kips earthquake load. Fillet welds are specified typically on three sides, each side.
