A concrete slab over steel deck bears on a composite steel beam equipped with headed shear studs. A continuous L4x4x3/8 structural steel angle runs along the slab edge and is secured with intermittent fillet welds. At the threshold, one-half inch diameter by thirty-six inch long deformed bar anchors are spaced at six inches on center. The edge assembly ties into typical slab edge details at composite beams.

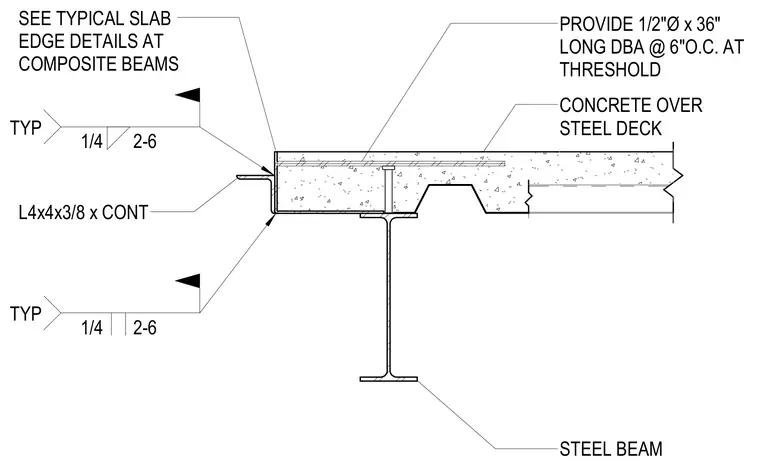

CONCRETE OVER STEEL DECK SEE TYPICAL SLAB EDGE DETAILS AT COMPOSITE BEAMS L4x4x3/8 x CONT PROVIDE 1/2"Ø x 36" LONG DBA @ 6"O.C. AT THRESHOLD 1/4 2-6 TYP 1/4 2-6 TYP
