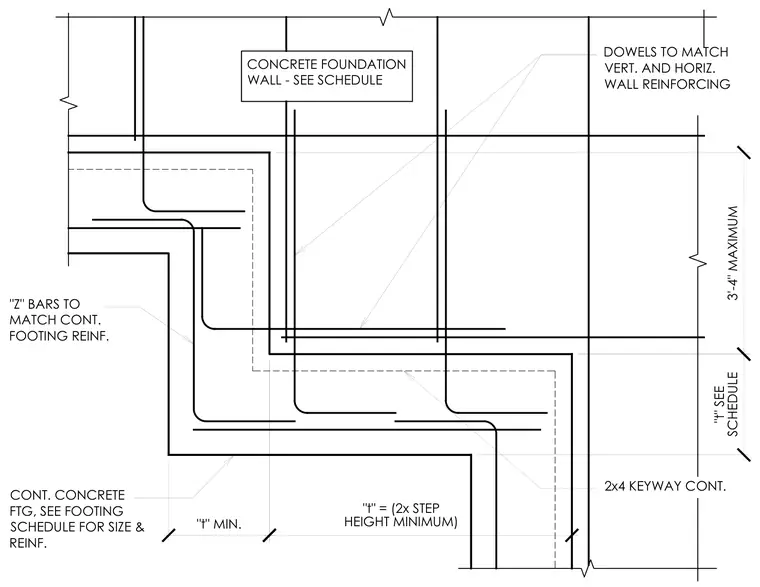

A stepped concrete foundation wall bears on a continuous concrete footing. Vertical dowels and continuous Z-bars tie the footing and wall reinforcement together, matching the size and spacing specified in the structural schedules. A continuous 2x4 keyway forms the horizontal construction joint between the stepped footing and the foundation wall. Step dimensions and maximum height limits govern the geometry of the vertical offset.
3'-4" MAXIMUM "t" SEE SCHEDULE "t" = (2x STEP HEIGHT MINIMUM) "t" MIN. DOWELS TO MATCH VERT. AND HORIZ. WALL REINFORCING 2x4 KEYWAY CONT. "Z" BARS TO MATCH CONT. FOOTING REINF. CONT. CONCRETE FTG, SEE FOOTING SCHEDULE FOR SIZE & REINF. CONCRETE FOUNDATION WALL - SEE SCHEDULE
