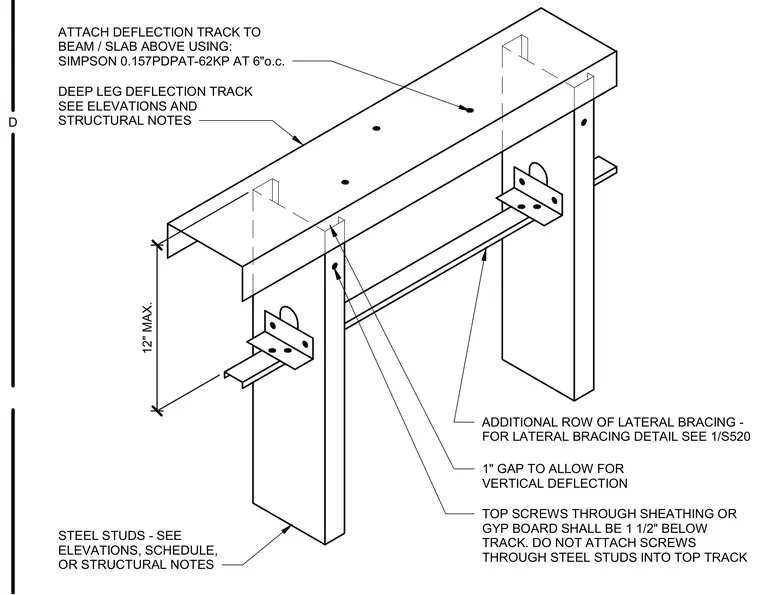

A deep-leg deflection track connects to the overhead beam or slab using Simpson 0.157PDPAT-62KP fasteners spaced at six inches on center. Steel studs sit within the track with a one-inch vertical gap to allow for structural deflection, and top screws through the sheathing or gypsum board must be positioned one and a half inches below the track without fixing the studs directly to the top track. An additional row of lateral bracing ties the studs together below the track assembly.
ATTACH DEFLECTION TRACK TO BEAM / SLAB ABOVE USING: SIMPSON 0.157PDPAT-62KP AT 6"o.c. DEEP LEG DEFLECTION TRACK SEE ELEVATIONS AND STRUCTURAL NOTES STEEL STUDS - SEE ELEVATIONS, SCHEDULE, OR STRUCTURAL NOTES ADDITIONAL ROW OF LATERAL BRACING - FOR LATERAL BRACING DETAIL SEE 1/S520 1" GAP TO ALLOW FOR VERTICAL DEFLECTION 12" MAX. TOP SCREWS THROUGH SHEATHING OR GYP BOARD SHALL BE 1 1/2" BELOW TRACK. DO NOT ATTACH SCREWS THROUGH STEEL STUDS INTO TOP TRACK D
