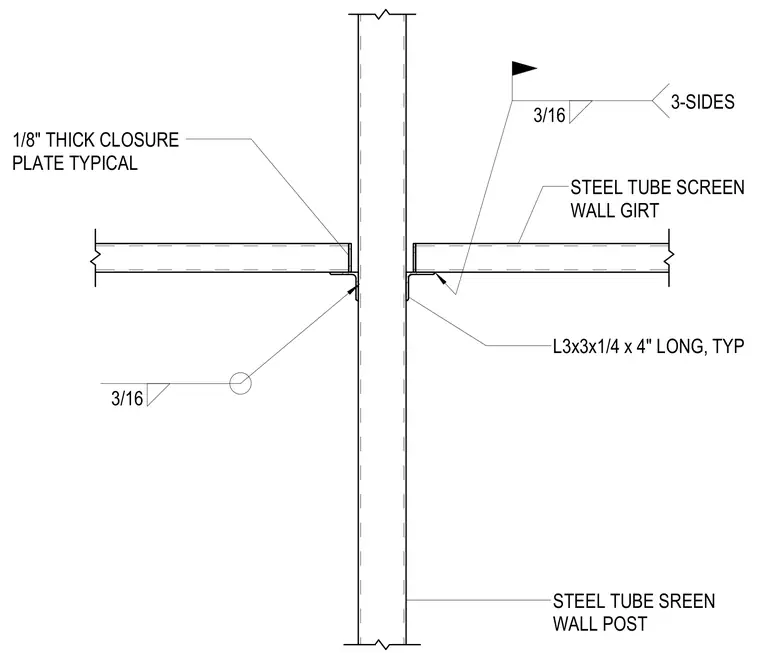

Steel tube screen wall girts frame into a vertical steel tube screen wall post using three-inch by three-inch by one-quarter-inch structural steel angles four inches long. A one-eighth-inch thick closure plate is welded at the girt end. The connection utilizes three-sixteenth-inch fillet welds applied on three sides.
STEEL TUBE SCREEN WALL GIRT STEEL TUBE SREEN WALL POST L3x3x1/4 x 4" LONG, TYP 1/8" THICK CLOSURE PLATE TYPICAL 3/16 3/16 3-SIDES
