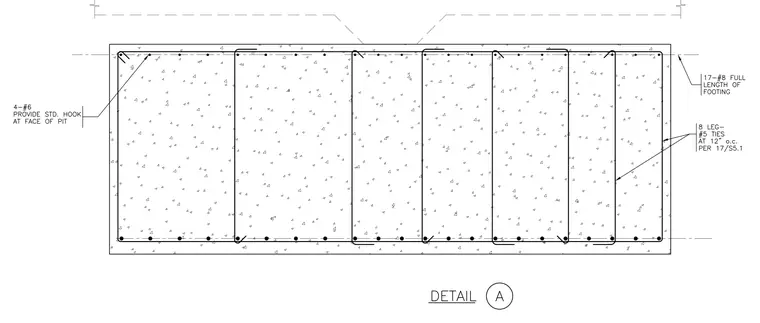

A reinforced concrete footing section contains seventeen number eight bars running the full length of the footing. Eight-leg number five ties are spaced at twelve inches on center per drawing seventeen over S five point one. Four number six bars with standard hooks are provided at the face of the pit.
