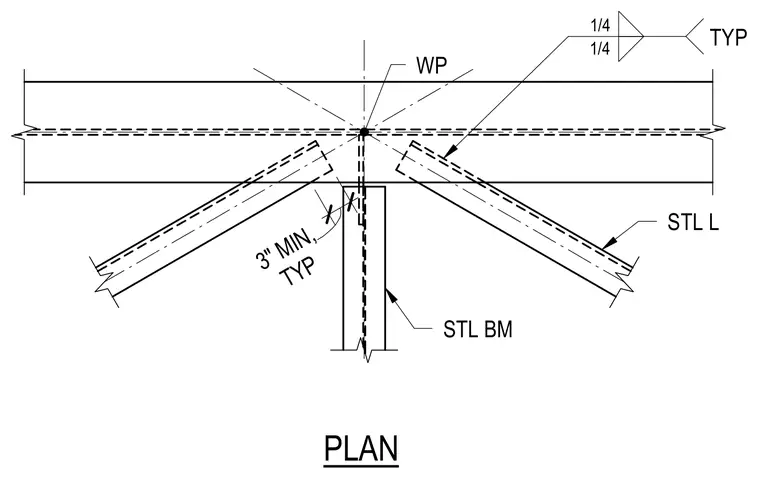

Steel angle structural members frame symmetrically into a continuous steel beam at a common work point with a three-inch minimum clearance typical. The angles are secured to the steel beam with typical quarter-inch fillet welds along their intersecting contact edges.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
