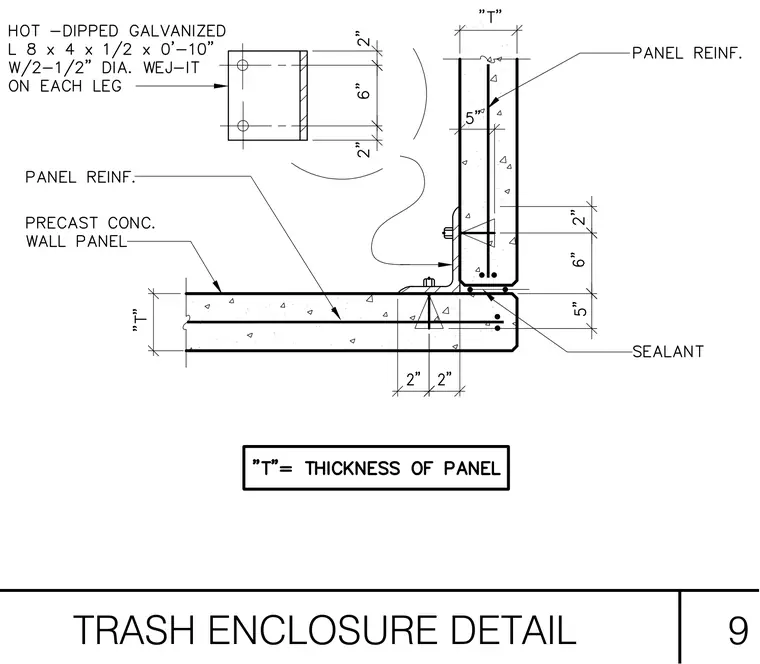

Precast concrete wall panels featuring panel reinforcement and variable thickness "T" connect at a 90-degree corner joint sealed with joint sealant. A hot-dipped galvanized structural steel angle measuring L 8 x 4 x 1/2 by 0'-10" long fastens to the panels using two 1/2-inch diameter Wej-It expansion anchors on each leg. The structural angle details are further defined with a 6-inch spacing between anchors and 2-inch edge distances.
