Structural · S-RC39P

HSS Hanger and Steel Beam Connection Details

Materials

Steel

Elements

Floors / Slabs Decks

Connections

HSS Connection

About this detail

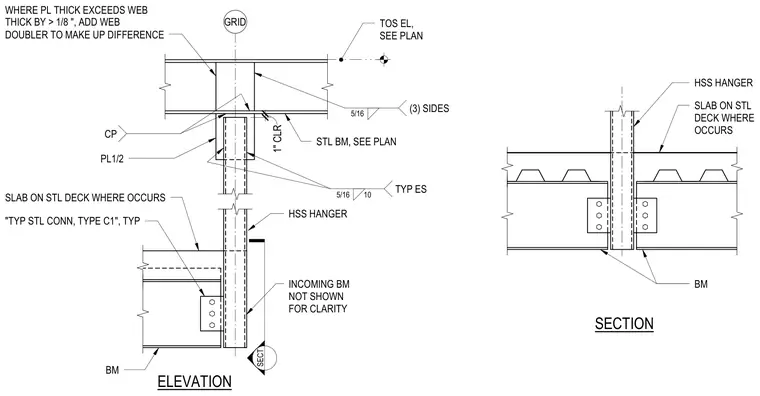

An empty HSS hanger passes through or connects to a supporting steel beam assembly with a one-inch clearance maintained at the junction. A half-inch connection plate is welded to the members using five-sixteenths fillet welds applied to three sides. Where the connection plate thickness exceeds the supporting web thickness by more than an eighth of an inch, a web doubler plate is added to make up the difference. A slab on steel deck occurs at the floor level, and incoming beams utilize typical type C1 steel connections where indicated.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
