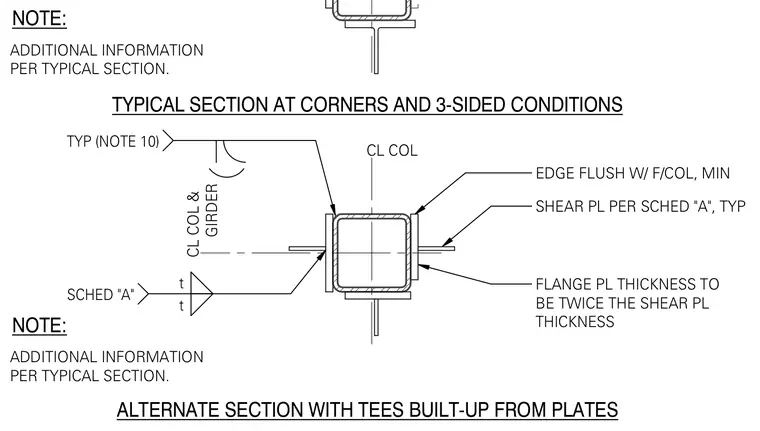

A built-up tee connection frames into a hollow structural section column at corners and three-sided conditions. The column centerline aligns with the girder centerline, and the member edge is flush with the face of the column. Shear plates are provided per schedule A with a typical thickness, and the flange plate thickness is specified to be twice the shear plate thickness.
NOTE: ADDITIONAL INFORMATION PER TYPICAL SECTION. TYPICAL SECTION AT CORNERS AND 3-SIDED CONDITIONS CL COL EDGE FLUSH W/ F/COL, MIN SHEAR PL PER SCHED "A", TYP FLANGE PL THICKNESS TO BE TWICE THE SHEAR PL THICKNESS NOTE: ADDITIONAL INFORMATION PER TYPICAL SECTION. ALTERNATE SECTION WITH TEES BUILT-UP FROM PLATES CL COL & GIRDER t t SCHED "A" TYP (NOTE 10)
