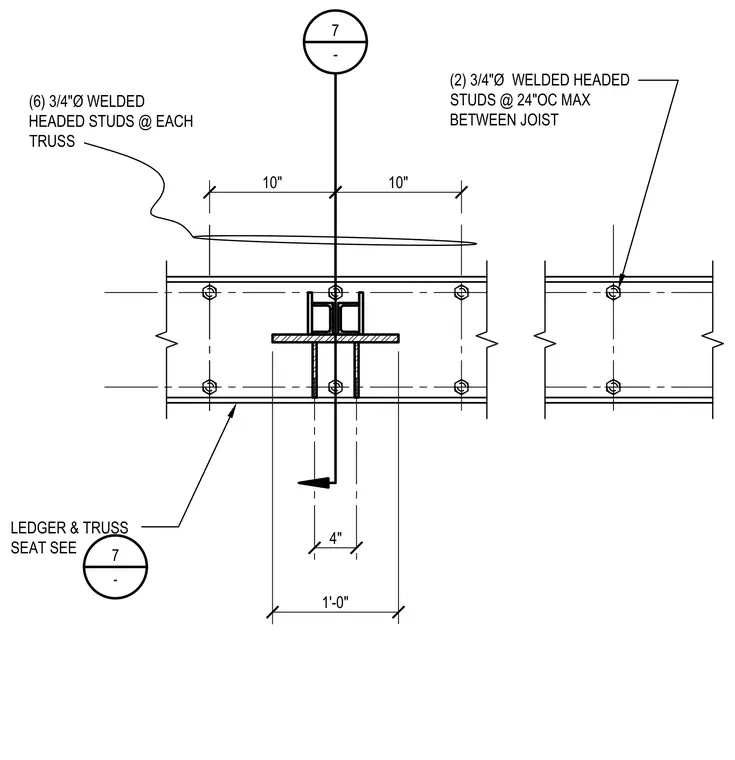

A structural steel ledger and truss seat assembly featuring welded headed shear studs anchored between joists and at each truss. The connection incorporates three-quarter-inch diameter welded headed studs spaced at twenty-four inches on center maximum between joists, alongside a group of six three-quarter-inch diameter welded headed studs located at each truss. Dimensions include a ten-inch spacing between stud groups and a four-inch dimension across the seat centerlines.
10" LEDGER & TRUSS SEAT SEE (2) 3/4"Ø WELDED HEADED STUDS @ 24"OC MAX BETWEEN JOIST 10" (6) 3/4"Ø WELDED HEADED STUDS @ EACH TRUSS 1'-0" 7 - 4" 7 -
