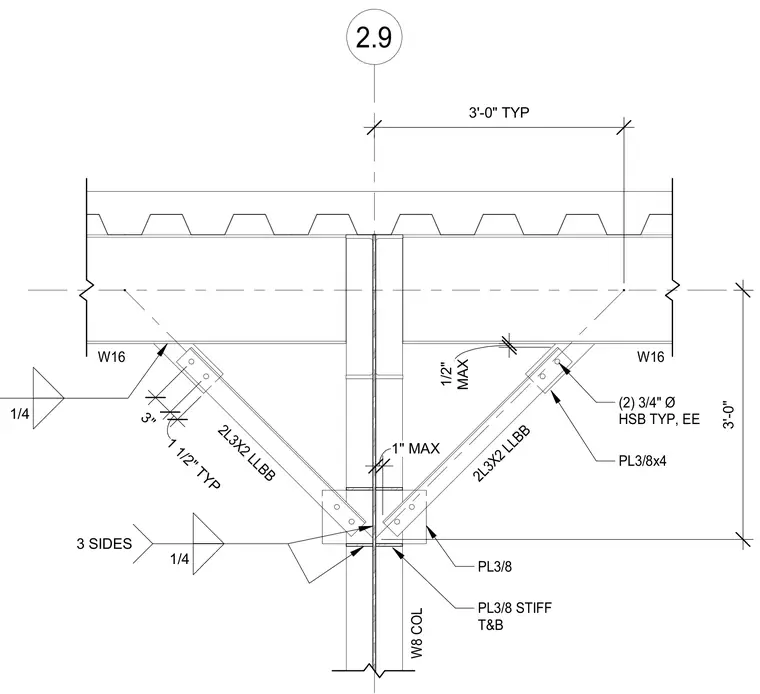

A W16 beam frames into a W8 column using a structural steel kicker brace assembly. The kickers are constructed from double angles (2L3X2 LLBB) connected via 3/8-inch gusset plates and secured with two 3/4-inch diameter high-strength bolts each. A 3/8-inch stiffener plate is welded to the top and bottom flanges of the column. Fillet welds of 1/4-inch size connect the gusset plates and angles. The assembly maintains specified clearances including a 1/2-inch maximum gap and a 1-inch maximum setback.
W8 COL W16 W16 (2) 3/4" Ø HSB TYP, EE PL3/8x4 2L3X2 LLBB 1/4 1/4 3 SIDES 3'-0" TYP 3'-0" MAX 1/2" 1" MAX PL3/8 STIFF T&B 2L3X2 LLBB PL3/8 3" 1 1/2" TYP 2.9
