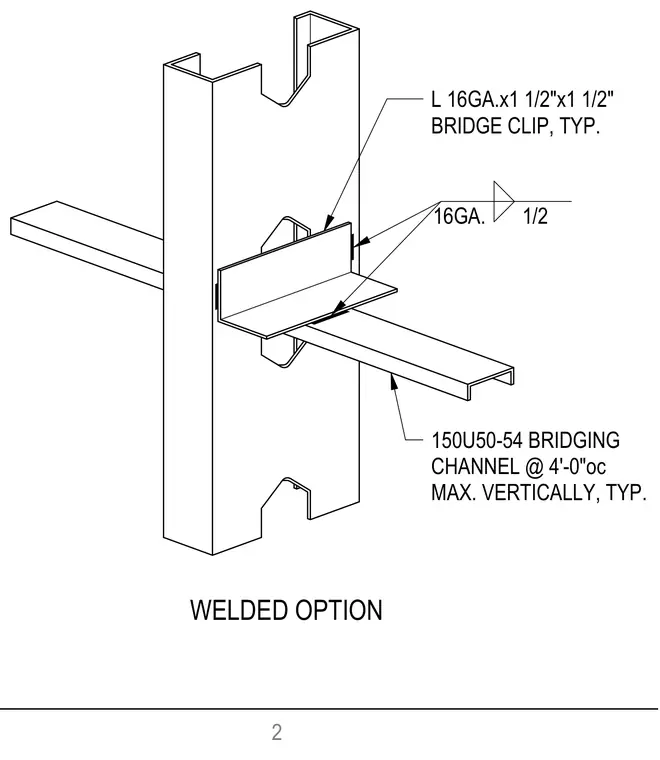

Cold-formed steel stud walls are laterally braced using 150U50-54 bridging channels installed horizontally at four-foot maximum vertical intervals. A 16-gauge bridge clip measuring one and a half by one and a half inches connects the channel to the stud web. The clip is secured with 16-gauge welds on both sides.
WELDED OPTION 150U50-54 BRIDGING CHANNEL @ 4'-0"oc MAX. VERTICALLY, TYP. L 16GA.x1 1/2"x1 1/2" BRIDGE CLIP, TYP. 16GA. 1/2 2
