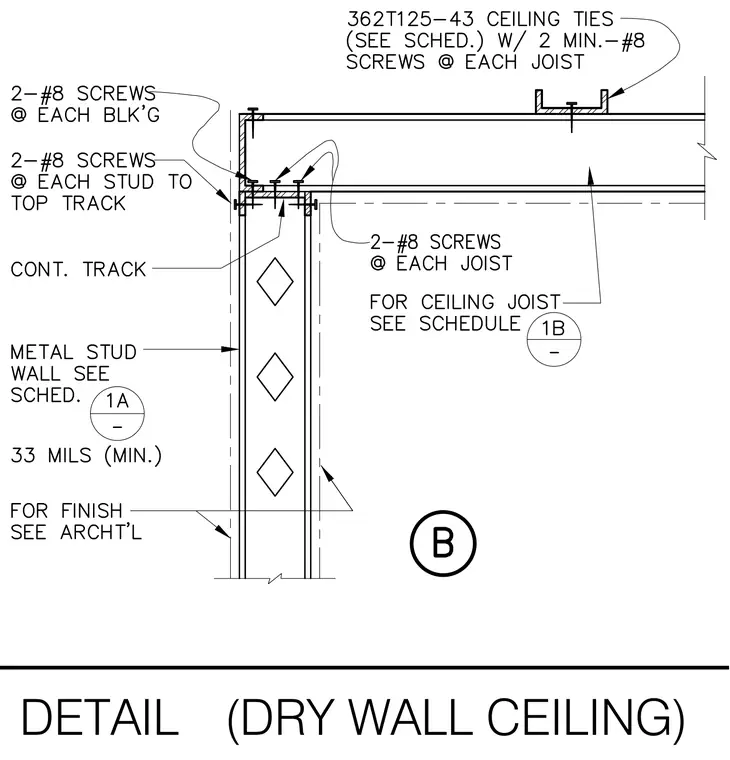

Cold-formed metal framing for a drywall ceiling intersects a metal stud wall top track with two number eight screws at each joist and blocking. The ceiling joists tie back with 362T125-43 ceiling ties attached using two minimum number eight screws at each joist. The continuous top track fastens to the metal stud wall with two number eight screws at each stud. Wall studs are specified at 33 mils minimum thickness, with finishes per architectural drawings.
