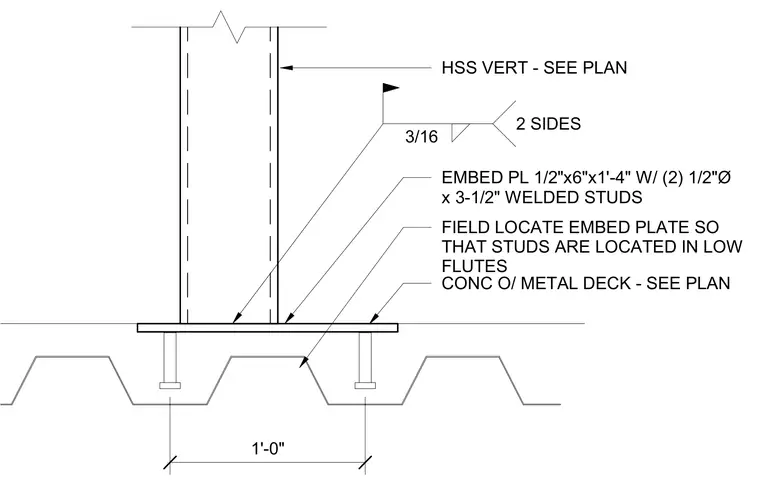

A vertical hollow structural section post bears on a one-half-inch by six-inch by one-foot-four-inch embed plate welded with three-sixteenth-inch fillet welds on two sides. The embed plate features two half-inch-diameter by three-and-a-half-inch welded studs field-located within the low flutes of the concrete over metal deck assembly. The embed plate is positioned so that studs sit in the low flutes of the deck per structural plans.
EMBED PL 1/2"x6"x1'-4" W/ (2) 1/2"Ø x 3-1/2" WELDED STUDS FIELD LOCATE EMBED PLATE SO THAT STUDS ARE LOCATED IN LOW FLUTES 3/16 2 SIDES HSS VERT - SEE PLAN CONC O/ METAL DECK - SEE PLAN 1'-0"
