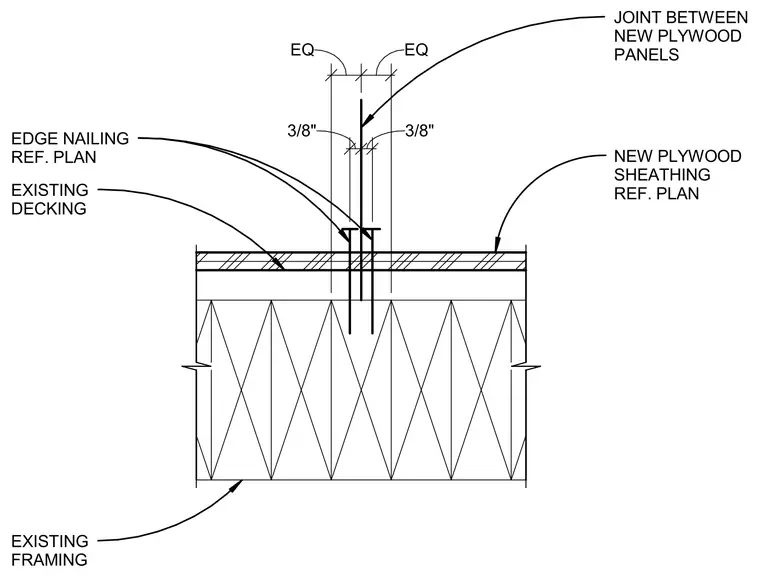

New plywood sheathing is installed over existing decking with a 3/8-inch joint maintained between adjacent new plywood panels centered over the framing. Edge nailing requirements are referenced per the structural plans. The assembly bears on existing wood framing and existing decking.
EQ EQ 3/8" 3/8" EXISTING DECKING JOINT BETWEEN NEW PLYWOOD PANELS NEW PLYWOOD SHEATHING REF. PLAN EXISTING FRAMING EDGE NAILING REF. PLAN
