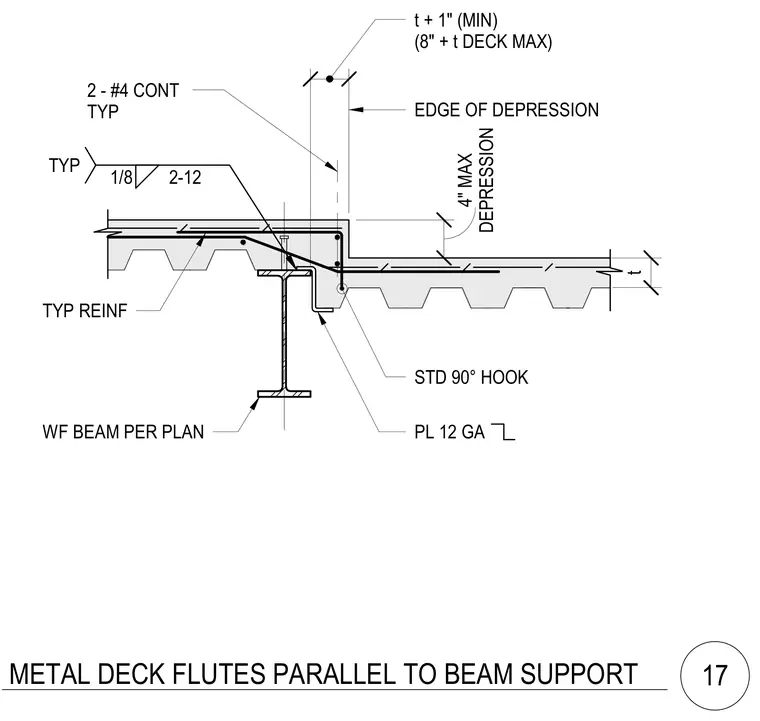

A wide-flange steel beam supports a concrete slab and metal deck assembly with a depression parallel to the beam. A twelve-gauge bent plate forms the edge of the depression, welded with a one-eighth-inch fillet weld at twelve-inch intervals. Two continuous number four reinforcing bars with standard ninety-degree hooks provide development across the depression edge, supplemented by typical slab reinforcement. The maximum depression depth is four inches, with slab thickness dimensions governed by structural plan requirements.
PL 12 GA TYP REINF 2 - #4 CONT TYP WF BEAM PER PLAN EDGE OF DEPRESSION STD 90° HOOK 1/8 2-12 TYP DEPRESSION 4" MAX t t + 1" (MIN) (8" + t DECK MAX) METAL DECK FLUTES PARALLEL TO BEAM SUPPORT 17
