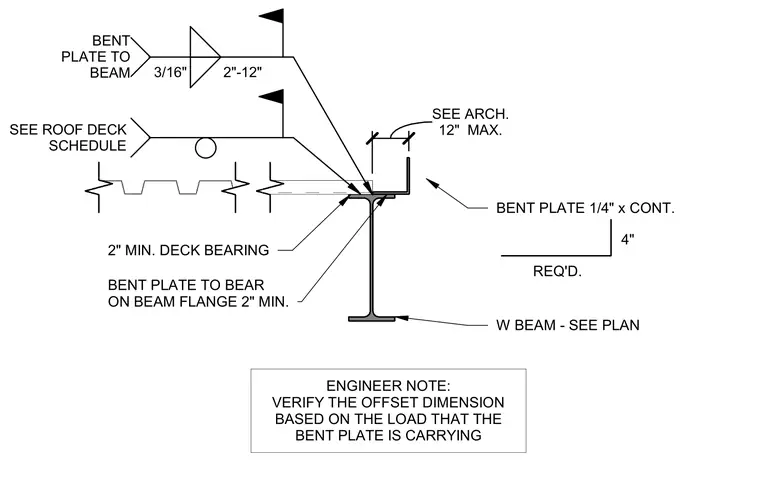

A metal roof deck bears onto the flange of a wide flange steel beam with a minimum two-inch bearing length as specified by the roof deck schedule. A continuous one-quarter-inch bent plate sits on the beam flange with a minimum two-inch bearing and is secured with intermittent three-sixteenths-inch fillet welds spaced two to twelve inches on center. The bent plate extends vertically four inches and provides a maximum twelve-inch offset per architectural requirements. An engineer note requires verifying the offset dimension based on the load carried by the bent plate.
12" MAX. SEE ARCH. SEE ROOF DECK SCHEDULE 3/16" 2"-12" BENT PLATE TO BEAM 2" MIN. DECK BEARING BENT PLATE TO BEAR ON BEAM FLANGE 2" MIN. BENT PLATE 1/4" x CONT. W BEAM - SEE PLAN REQ'D. 4" ENGINEER NOTE: VERIFY THE OFFSET DIMENSION BASED ON THE LOAD THAT THE BENT PLATE IS CARRYING
