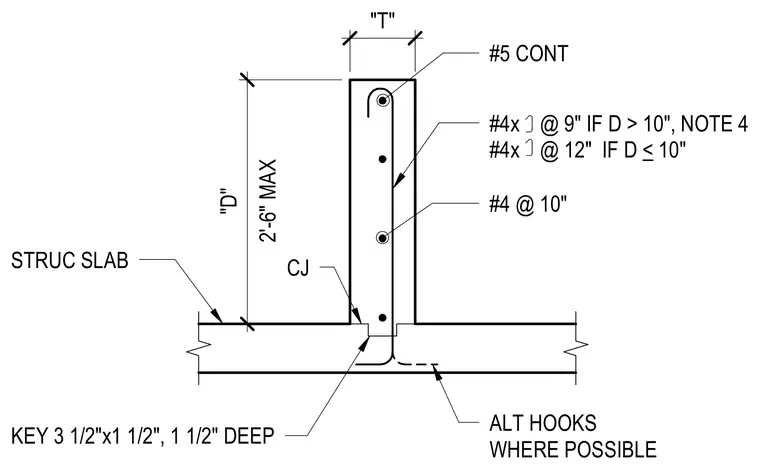

A concrete curb rises from a structural slab with a keyed construction joint at the base, measuring 3-1/2 inches wide by 1-1/2 inches deep. The curb has a maximum height "D" of 2 feet 6 inches and a thickness "T" of 30 inches, reinforced with a continuous number 5 bar at the top. Number 4 stirrups are spaced at 9 inches on center when depth "D" exceeds 10 inches, or at 12 inches on center when depth "D" is less than or equal to 10 inches. Additional number 4 bars run horizontally at 10 inches on center through the curb height, and alternate hooks are placed in the slab where possible.
8" ALT HOOKS WHERE POSSIBLE KEY 3 1/2"x1 1/2", 1 1/2" DEEP CJ #4 @ 10" #4x @ 9" IF D > 10", NOTE 4 #4x @ 12" IF D < 10" #5 CONT STRUC SLAB "D" 2'-6" MAX "T" 30"
