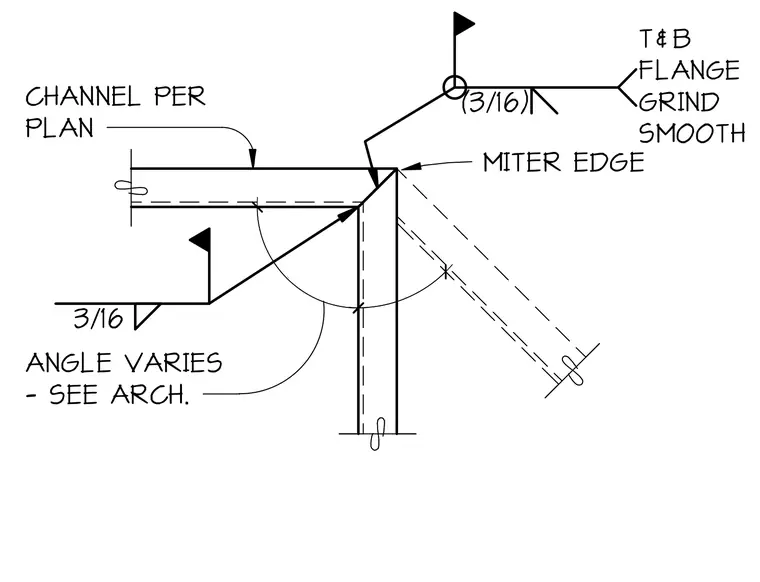

A structural steel channel per plan forms a corner with a mitered edge where the angle varies as coordinated with the architectural drawings. A three-sixteenths-inch fillet weld is specified along the top and bottom flange, with welds ground smooth at the miter joint. Field welding symbols indicate site assembly.
90.0 0° 45.00 ° ANGLE VARIES - SEE ARCH. MITER EDGE CHANNEL PER PLAN (3/16) T&B FLANGE GRIND SMOOTH 3/16
