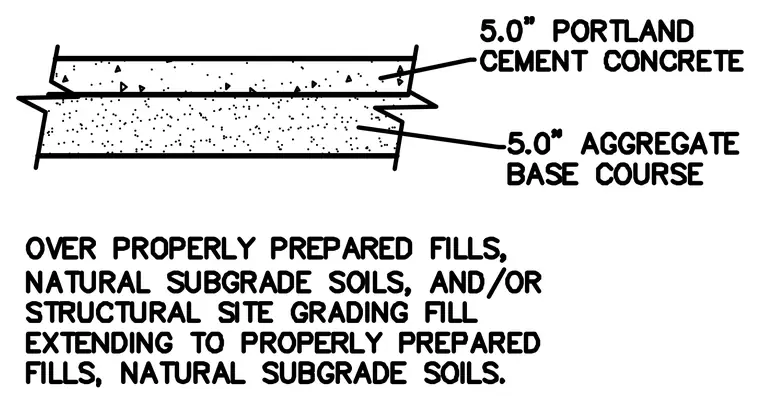

A five-inch Portland cement concrete pavement layer is placed directly over a five-inch aggregate base course. The pavement structure bears on properly prepared fills, natural subgrade soils, and structural site grading fill.
