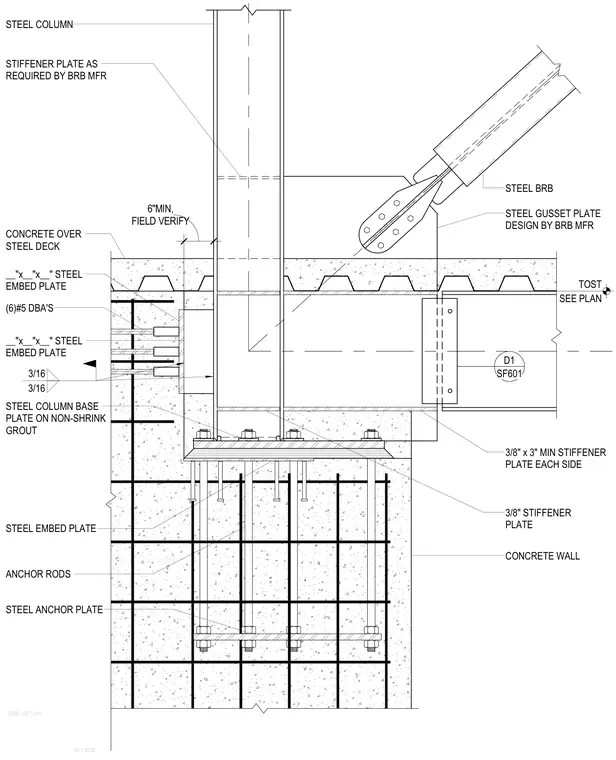

A steel column ties into a reinforced concrete wall using a base plate set on non-shrink grout over anchor rods with steel anchor plates and embedded plates welded with three-sixteenths inch fillet welds. A steel buckling-restrained brace connects via a gusset plate designed by the manufacturer, welded with a three-eighths inch stiffener plate on each side. A concrete slab over steel deck bears adjacent to the column with designated embed plates and deformed bar anchors.
BRBF-DET-01R STEEL COLUMN STEEL GUSSET PLATE DESIGN BY BRB MFR STEEL BRB STEEL COLUMN BASE PLATE ON NON-SHRINK GROUT STEEL EMBED PLATE ANCHOR RODS STEEL ANCHOR PLATE TOST SEE PLAN STIFFENER PLATE AS REQUIRED BY BRB MFR 3/8" x 3" MIN STIFFENER PLATE EACH SIDE SB1CW208 CONCRETE WALL CONCRETE OVER STEEL DECK 3/8" STIFFENER PLATE SF601 D1 __"x__"x__" STEEL EMBED PLATE (6)#5 DBA'S __"x__"x__" STEEL EMBED PLATE 3/16 3/16 FIELD VERIFY 6"MIN,
