Dunnage Platform Post Over Roof Beam

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Roofs Floors / Slabs Decks

Connections

HSS Connection Bolted Connection

About this detail

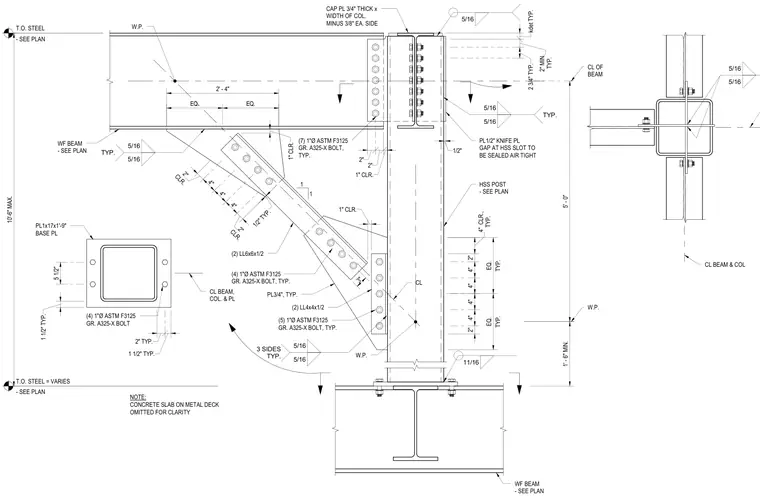

A hollow structural section post connects to a supporting wide-flange roof beam using a one-half-inch thick knife plate inserted into a slotted column and sealed airtight, with a three-quarter-inch thick cap plate welded with five-sixteenths-inch fillet welds. Lateral support is provided by double-angle struts, including two long-leg six-by-six-by-one-half-inch angles secured with seven one-inch diameter ASTM F3125 Grade A325-X bolts and two long-leg four-by-four-by-one-half-inch angles secured with four and five one-inch diameter bolts. The column base is anchored with a one-inch by seventeen-inch by one-foot nine-inch base plate fastened with four one-inch diameter anchor bolts. A concrete slab on metal deck is omitted for clarity.
