Rail Support Connection to Concrete Edge

Materials

Concrete Steel Timber / Wood

Elements

Anchors / Embeds Connections / Plates

Connections

HSS Connection Welded Connection Bolted Connection Embed Plate Expansion / Slip Connection

About this detail

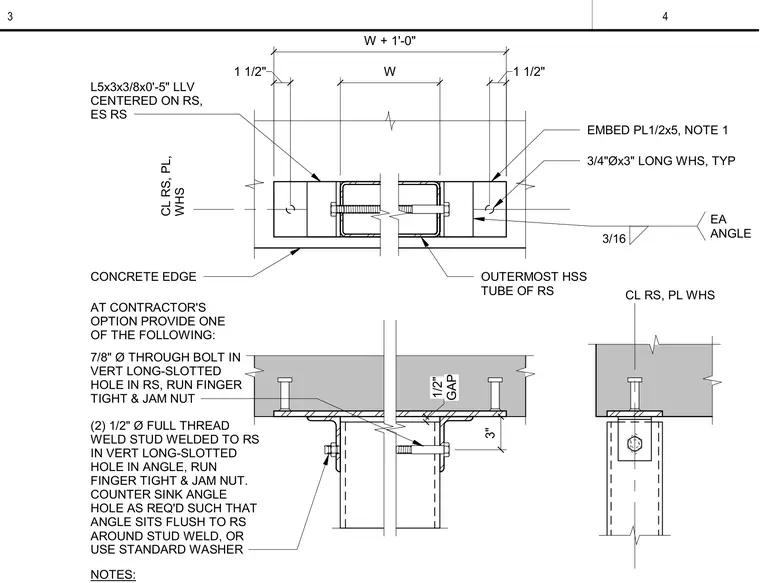

A structural steel rail support connects to a concrete edge assembly using an embedded steel plate measuring 1/2 inch by 5 inches, anchored into the concrete with three-quarter-inch by 3-inch long headed stud anchors. An angle measuring L5x3x3/8 by 0 feet 5 inches centers on the rail support, welded with a three-sixteenths inch fillet weld on each side of the angle. The contractor has the option to provide either two half-inch diameter full thread weld studs welded to the rail support in a vertical long-slotted hole in the angle, run finger tight with a jam nut and countersunk as required to sit flush, or a standard washer with a seven-eighths inch through bolt in a vertical long-slotted hole in the rail support. A one-half-inch gap is provided between the structural components.
