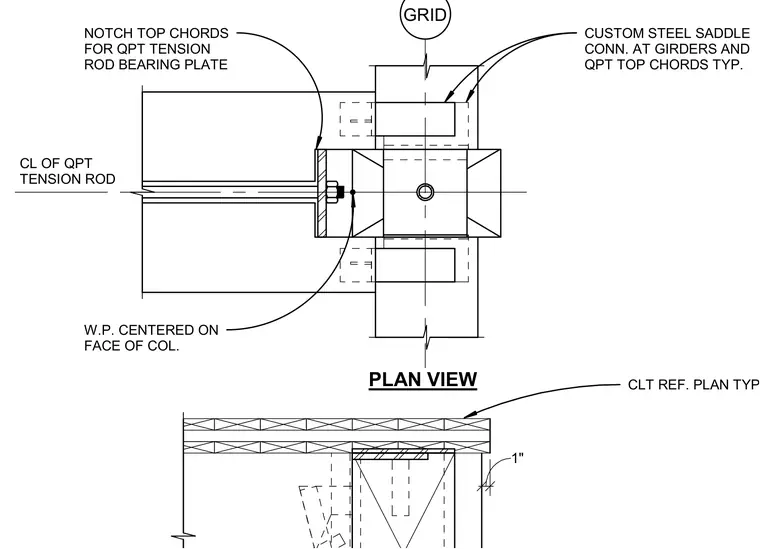

A custom steel saddle connection ties timber girders and top chords to a central column, featuring a work point centered on the face of the column. The timber top chords are notched to accommodate a tension rod bearing plate, aligning with the centerline of the QPT tension rod. A cross-laminated timber reference plan is established at the typical floor level. The grid line intersects at the center of the column assembly.
CUSTOM STEEL SADDLE CONN. AT GIRDERS AND QPT TOP CHORDS TYP. W.P. CENTERED ON FACE OF COL. CL OF QPT TENSION ROD NOTCH TOP CHORDS FOR QPT TENSION ROD BEARING PLATE PLAN VIEW CLT REF. PLAN TYP. 1" GRID
