Structural · S-RAHVF

Exterior Slab Edge Detail

Materials

Concrete Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Floors / Slabs Decks Arches Bracing Connections / Plates

Connections

HSS Connection Bracing Connection Welded Connection Deck Attachment

About this detail

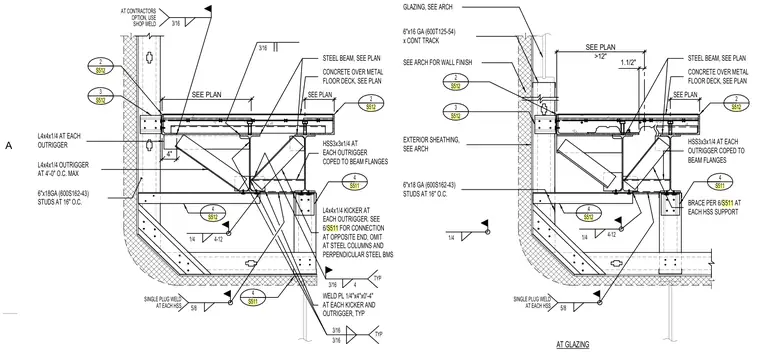

Concrete over a metal floor deck is supported by structural steel beams at the exterior slab edge assembly. Hollow structural section outriggers, specifically HSS 3x3x1/4 members, are spaced at four feet on center, coped to the beam flanges and tied with L4x4x1/4 kickers. The assembly incorporates welded connections including 1/4 inch fillet welds and 5/8 inch single plug welds at each hollow structural section. Cold-formed metal framing consists of 6 inch by 18 gauge studs at 16 inches on center with continuous tracks supporting exterior sheathing and glazing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
