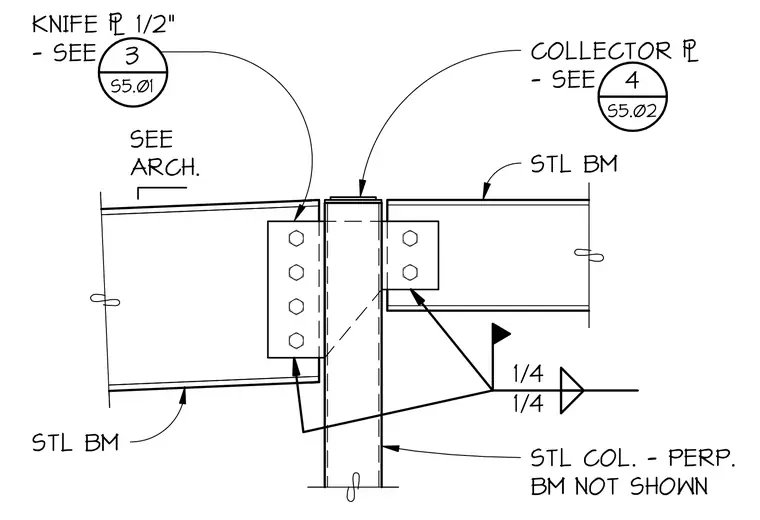

A steel beam connects to a perpendicular steel column via a half-inch knife plate welded with quarter-inch fillets, referenced to sheet S5.01. A collector plate ties into the top of the column and is referenced to sheet S5.02. A second steel beam frames into the opposite side of the column with a bolted connection and a quarter-inch fillet weld.
SEE ARCH. KNIFE ( 1/2" - SEE COLLECTOR ( - SEE STL BM STL COL. - PERP. BM NOT SHOWN STL BM 1/4 1/4 3 S5.01 4 S5.02
