A drag plate connection occurs at a buckling-restrained braced frame column supporting a cross-laminated timber floor deck. A one-half inch thick continuity plate is positioned on each side of the column web, aligned with the centerline of the drag plate. The cross-laminated timber deck is notched four inches wide, with the timber routed out up to one and one-half inches below for recessed bolt heads. An L6x4x3/8 by zero-foot eight-inch long angle supports the deck assembly, and a gypcrete topping is applied over the timber deck. A splice plate is provided as required but may be omitted at the contractor's option in favor of a full-length drag plate.

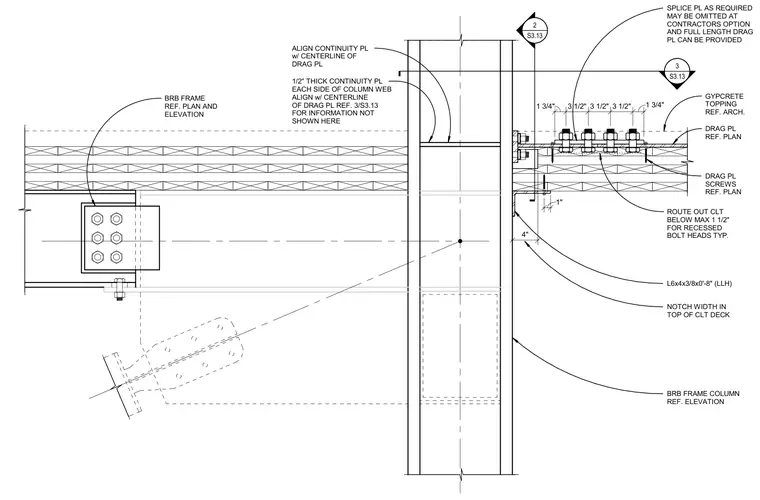

1/2" THICK CONTINUITY PL EACH SIDE OF COLUMN WEB ALIGN w/ CENTERLINE OF DRAG PL REF. 3/S3.13 FOR INFORMATION NOT SHOWN HERE BRB FRAME REF. PLAN AND ELEVATION ALIGN CONTINUITY PL w/ CENTERLINE OF DRAG PL 2 S3.13 _____ BRB FRAME COLUMN REF. ELEVATION 4" NOTCH WIDTH IN TOP OF CLT DECK DRAG PL SCREWS REF. PLAN DRAG PL REF. PLAN GYPCRETE TOPPING REF. ARCH. 1 3/4" 3 1/2" 3 1/2" 3 1/2" 1 3/4" 3 S3.13 _____ ROUTE OUT CLT BELOW MAX 1 1/2" FOR RECESSED BOLT HEADS TYP. 1" L6x4x3/8x0'-8" (LLH) SPLICE PL AS REQUIRED MAY BE OMITTED AT CONTRACTORS OPTION AND FULL LENGTH DRAG PL CAN BE PROVIDED
