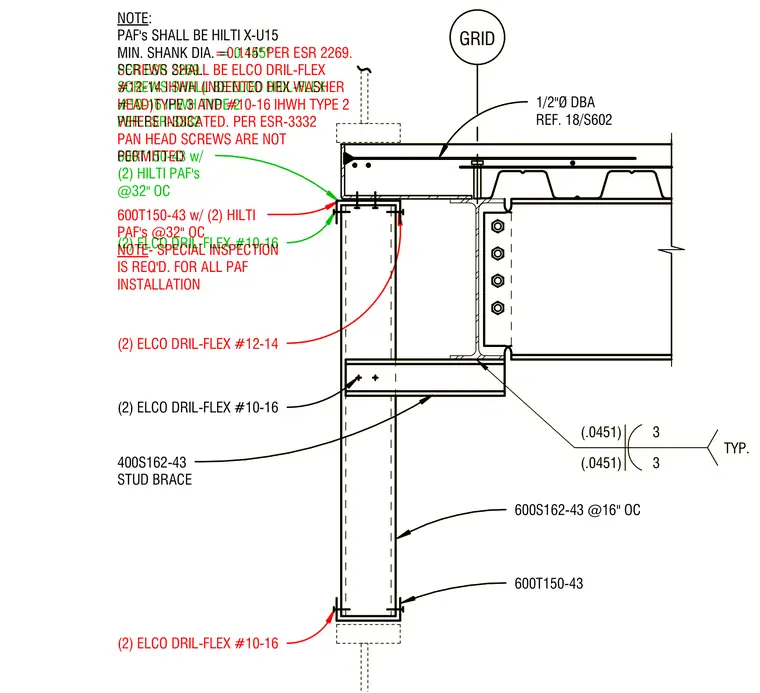

Cold-formed steel framing connects to a structural steel beam supporting a metal deck with a 1/2-inch diameter deformed bar anchor referenced on sheet S602. The 600S162-43 stud framing at 16 inches on center connects to top and bottom 600T150-43 tracks using two Elco Dril-Flex #12-14 or #10-16 indented hex washer head screws. A 400S162-43 stud brace ties into the assembly with two Elco Dril-Flex #10-16 screws at each connection. The track secures to the supporting structure with two Hilti powder-actuated fasteners at 32 inches on center, using Hilti X-U15 fasteners with a minimum shank diameter of 0.145 inches per ESR 2269. Special inspection is required for all powder-actuated fastener installations, and pan head screws are not permitted per ESR-3332.
600S162-43 @16" OC GRID 600T150-43 (2) ELCO DRIL-FLEX #12-14 600T150-43 w/ (2) HILTI PAF's @32" OC NOTE- SPECIAL INSPECTION IS REQ'D. FOR ALL PAF INSTALLATION NOTE: PAF's SHALL BE HILTI X-U15 MIN. SHANK DIA.=0.145" PER ESR 2269. SCREWS SHALL BE ELCO DRIL-FLEX #12-14 IHWH (INDENTED HEX WASHER HEAD)TYPE 3 AND #10-16 IHWH TYPE 2 WHERE INDICATED. PER ESR-3332 PAN HEAD SCREWS ARE NOT PERMITTED (.0451) 3 (.0451) 3 TYP. 1/2"Ø DBA REF. 18/S602 (2) ELCO DRIL-FLEX #10-16 400S162-43 STUD BRACE (2) ELCO DRIL-FLEX #10-16 600S162-43 @16" OC GRID 600T150-43 (2) ELCO DRIL-FLEX #10-16 600T150-43 w/ (2) HILTI PAF's @32" OC NOTE: PAF's SHALL BE HILTI X-U15 MIN. SHANK DIA. = 0.145" PER ESR 2269. SCREWS SHALL BE ELCO DRIL-FLEX #10-16 IHWH TYPE 2 PER ESR-3332 (.0451) 3 (.0451) 3 TYP. 1/2"Ø DBA REF. 18/S602 (2) ELCO DRIL-FLEX #10-16 400S162-43 STUD BRACE
