A hollow structural section splice connection is reinforced with plates measuring 1 inch by 1 and 3/4 inches by 1 foot 6 inches long on each side, secured with quarter-inch fillet welds. A wood nailer matching the beam flange width is attached using 7/8-inch diameter welded threaded rods spaced at 16 inches on center staggered on the beam, with countersanks limited to a 3/4-inch maximum depth. One threaded rod is positioned within 9 inches maximum from each end of the nailer and from each splice. A steel beam supports a sub-purlin as sized per plan, with provisions for 5-inch diameter maximum holes for pipes at 10 feet on center minimum when required by approved sprinkler drawings.

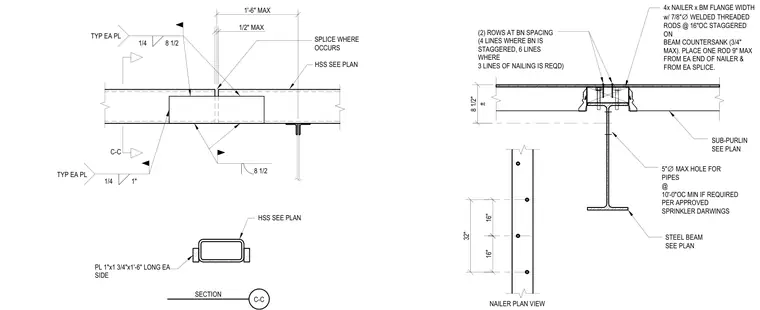

8 1/2" ± 16" 16" 32" NAILER PLAN VIEW 4x NAILER x BM FLANGE WIDTH w/ 7/8" ∅ WELDED THREADED RODS @ 16"OC STAGGERED ON BEAM COUNTERSANK (3/4" MAX). PLACE ONE ROD 9" MAX FROM EA END OF NAILER & FROM EA SPLICE. 5" ∅ MAX HOLE FOR PIPES @ 10'-0"OC MIN IF REQUIRED PER APPROVED SPRINKLER DARWINGS SUB-PURLIN SEE PLAN STEEL BEAM SEE PLAN (2) ROWS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD) 1/2" MAX 1'-6" MAX C-C SECTION SPLICE WHERE OCCURS HSS SEE PLAN HSS SEE PLAN PL 1"x1 3/4"x1'-6" LONG EA SIDE TYP EA PL TYP EA PL C-C 1/4 8 1/2 1/4 1" 8 1/2
