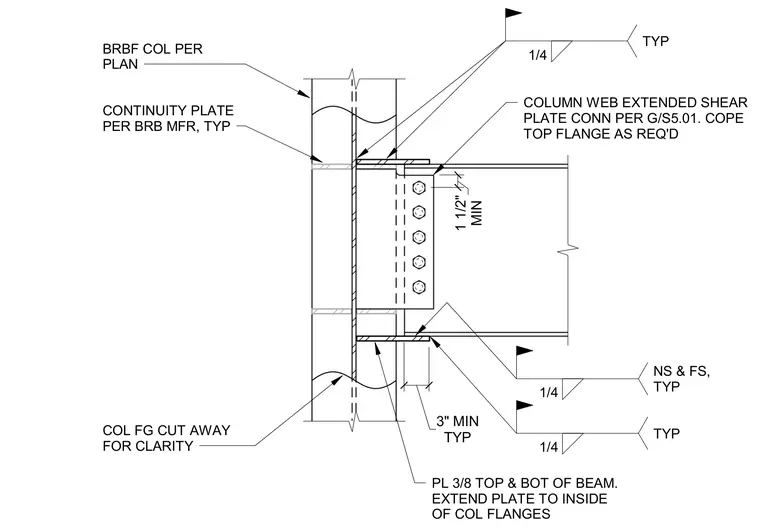

A wind girt frames into a buckling-restrained braced frame column with a three-eighths-inch top and bottom plate extending to the inside of the column flanges, welded with one-quarter-inch fillet welds near side and far side. A column web extended shear plate connection provides web attachment, with the beam top flange coped as required maintaining a one-and-one-half-inch minimum clearance. Continuity plates are installed per the buckling-restrained brace manufacturer requirements.
CONTINUITY PLATE PER BRB MFR, TYP COLUMN WEB EXTENDED SHEAR PLATE CONN PER G/S5.01. COPE TOP FLANGE AS REQ'D MIN 1 1/2" COL FG CUT AWAY FOR CLARITY BRBF COL PER PLAN PL 3/8 TOP & BOT OF BEAM. EXTEND PLATE TO INSIDE OF COL FLANGES 1/4 NS & FS, TYP TYP 3" MIN 1/4 TYP 1/4 TYP
