Buckling-Restrained Brace Base Plate and Anchor Rod Layout

Materials

Concrete Steel Timber / Wood Masonry / CMU

Elements

Columns Bracing Anchors / Embeds Connections / Plates

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection Embed Plate

About this detail

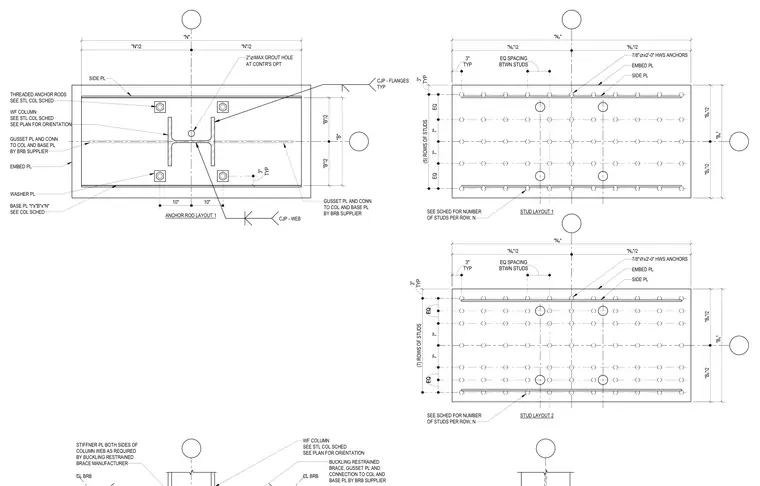

A wide-flange steel column bears on a base plate welded with complete-joint-penetration welds at the web and flanges, featuring stiffener plates on both sides of the column web as required by the buckling-restrained brace manufacturer. Threaded anchor rods with washer plates secure the base plate, accompanied by a two-inch diameter maximum grout hole at the contractor's option. Two distinct stud layouts show embedment plates welded to side plates and anchored with seven-eighth-inch diameter by two-foot-long headed stud anchors, with five or seven rows of studs spaced evenly at seven inches on center. The buckling-restrained brace, gusset plate, and connection to the column and base plate are provided by the brace supplier, with orientation sized per the structural column schedule and plan.
