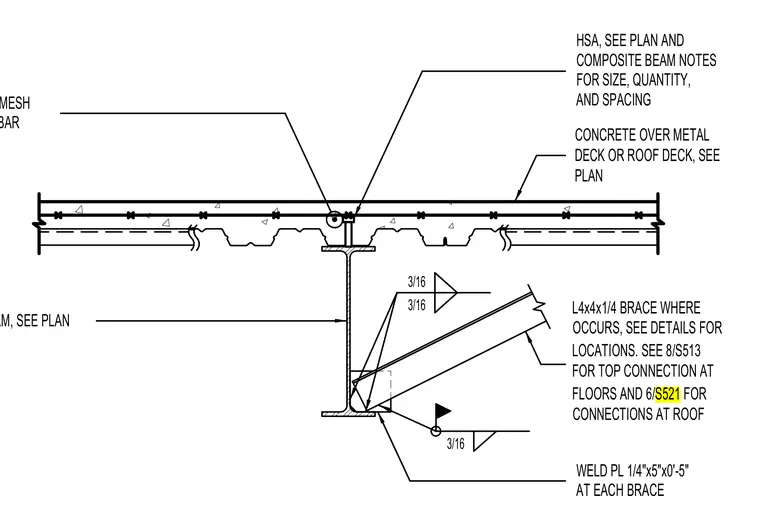

An angle brace connects to the web of a steel beam supporting a concrete slab over a metal deck or roof deck. A plate measuring one-quarter inch by five inches by five inches welds to each brace with three-sixteenth-inch fillet welds. A continuous mesh support bar reinforces the concrete slab over the metal deck alongside shear studs sized per plan. The brace member consists of an L4x4x1/4 angle attached to the beam web.
WELD PL 1/4"x5"x0'-5" AT EACH BRACE 3/16 3/16 STEEL BEAM, SEE PLAN HSA, SEE PLAN AND COMPOSITE BEAM NOTES FOR SIZE, QUANTITY, AND SPACING #4 x CONT MESH SUPPORT BAR 3/16 L4x4x1/4 BRACE WHERE OCCURS, SEE DETAILS FOR LOCATIONS. SEE 8/S513 FOR TOP CONNECTION AT FLOORS AND 6/S521 FOR CONNECTIONS AT ROOF CONCRETE OVER METAL DECK OR ROOF DECK, SEE PLAN
